BC817DPN_R1_00001

Active

Panjit International Inc.

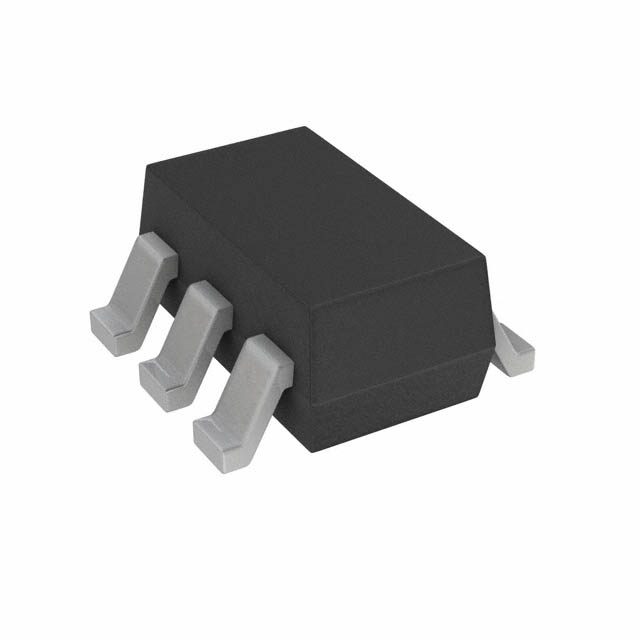

SOT23-6L, TRANSISTOR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

BC817DPN_R1_00001

Active

Panjit International Inc.

SOT23-6L, TRANSISTOR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BC817DPN_R1_00001

Current - Collector (Ic) (Max) [Max]	500 mA
Current - Collector Cutoff (Max) [Max]	100 nA
DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	100 hFE
Frequency - Transition	100 MHz
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	SOT-23-6
Power - Max [Max]	330 mW
Supplier Device Package	SOT-23-6
Transistor Type	1 NPN, 1 PNP
Vce Saturation (Max) @ Ib, Ic	700 mV
Voltage - Collector Emitter Breakdown (Max)	45 V

BC817 Series

Part	Frequency - Transition	Mounting Type	Supplier Device Package	Voltage - Collector Emitter Breakdown (Max)	Transistor Type	Current - Collector Cutoff (Max) [Max]	Current - Collector (Ic) (Max) [Max]	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Vce Saturation (Max) @ Ib, Ic	Power - Max [Max]	Qualification	Grade
Panjit International Inc. BC817-40_R1_00001	100 MHz	Surface Mount	SOT-323	45 V	NPN	100 nA	500 mA	250	-55 °C	150 °C	SC-70 SOT-323	700 mV
Panjit International Inc. BC817DPN-AU_R1_000A1	100 MHz	Surface Mount	SOT-23-6	45 V	1 NPN 1 PNP	100 nA	500 mA	100 hFE	-55 °C	150 °C	SOT-23-6	700 mV	330 mW	AEC-Q101	Automotive
Panjit International Inc. BC817-16-AU_R1_000A1	100 MHz	Surface Mount	SOT-23	45 V	NPN	100 nA	500 mA	100 hFE	-55 °C	150 °C	SC-59 SOT-23-3 TO-236-3	700 mV	330 mW	AEC-Q101	Automotive
Panjit International Inc. BC817-25_R1_00001	100 MHz	Surface Mount	SOT-323	45 V	NPN	100 nA	500 mA	160	-55 °C	150 °C	SC-70 SOT-323	700 mV
Panjit International Inc. BC817-40W_R1_00001	100 MHz	Surface Mount	SOT-323	45 V	NPN	100 nA	500 mA	250	-55 °C	150 °C	SC-70 SOT-323	700 mV
Panjit International Inc. BC817-25W-AU_R1_000A1	100 MHz	Surface Mount	SOT-323	45 V	NPN	100 nA	500 mA	160	-55 °C	150 °C	SC-70 SOT-323	700 mV		AEC-Q101	Automotive
Panjit International Inc. BC817DPN_R1_00001	100 MHz	Surface Mount	SOT-23-6	45 V	1 NPN 1 PNP	100 nA	500 mA	100 hFE	-55 °C	150 °C	SOT-23-6	700 mV	330 mW
Panjit International Inc. BC817-40-AU_R1_000A1	100 MHz	Surface Mount	SOT-23	45 V	NPN	100 nA	500 mA	250	-55 °C	150 °C	SC-59 SOT-23-3 TO-236-3	700 mV	330 mW	AEC-Q101	Automotive

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.26
		10	$ 0.16
		100	$ 0.10
		500	$ 0.07
		1000	$ 0.06
	Digi-Reel®	1	$ 0.26
		10	$ 0.16
		100	$ 0.10
		500	$ 0.07
		1000	$ 0.06
	Tape & Reel (TR)	3000	$ 0.05
		6000	$ 0.05
		9000	$ 0.04
		15000	$ 0.04
		21000	$ 0.04
		30000	$ 0.04
		75000	$ 0.03
		150000	$ 0.03
		300000	$ 0.03

Description

General part information

BC817 Series

Bipolar (BJT) Transistor Array 1 NPN, 1 PNP 45V 500mA 100MHz 330mW Surface Mount SOT-23-6
