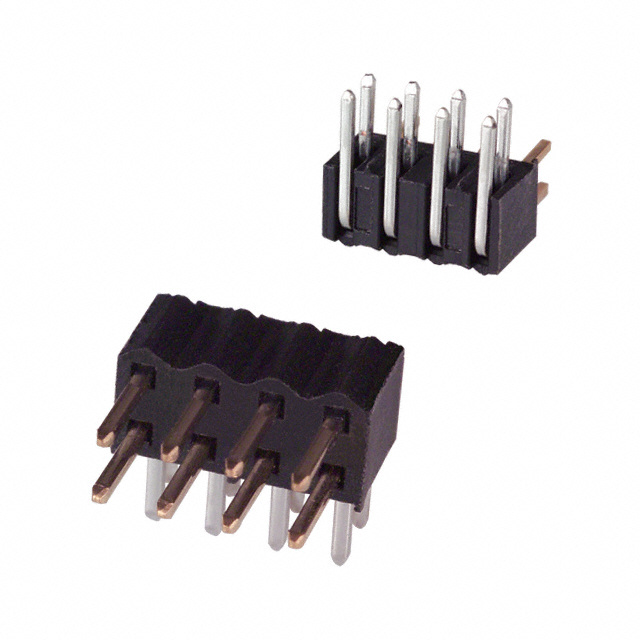

151208-7422-TB - 151208-7422-TB,RB

151208-7422-TB

Obsolete
3M (TC)

CONN HEADER R/A 8POS 2MM

Deep-Dive with AI

Search across all available documentation for this part.

Documents1512 SeriesDatasheet
151208-7422-TB - 151208-7422-TB,RB

151208-7422-TB

Obsolete
3M (TC)

CONN HEADER R/A 8POS 2MM

Deep-Dive with AI

Documents1512 SeriesDatasheet

Technical Specifications

Parameters and characteristics for this part

Specification151208-7422-TB
Connector TypeHeader
Contact Finish - MatingGold
Contact Finish - PostTin-Lead
Contact Finish Thickness - Mating30 Áin
Contact Finish Thickness - Mating0.76 Ám
Contact Finish Thickness - Post200 µin
Contact Finish Thickness - Post5.08 µm
Contact Length - Mating3.86 mm
Contact Length - Mating0.152 in
Contact Length - Post0.118 in
Contact Length - Post3 mm
Contact MaterialCopper Alloy
Contact ShapeSquare
Contact TypeMale Pin
Fastening TypePush-Pull
Insulation ColorBlack
Insulation Height [z]0.165 in
Insulation Height [z]4.2 mm
Material Flammability RatingUL94 V-0
Mounting TypeThrough Hole, Right Angle
Number of Positions8
Number of Positions LoadedAll
Number of Rows2
Operating Temperature [Max]105 ░C
Operating Temperature [Min]-55 °C
Pitch - Mating [x]0.079 in
Pitch - Mating [x]2 mm
Row Spacing - Mating0.079 in
Row Spacing - Mating2 mm
ShroudingUnshrouded
StyleBoard to Board, Cable
TerminationSolder

151208 Series

PartMaterial Flammability RatingContact TypeContact Finish - MatingOperating Temperature [Max]Operating Temperature [Min]TerminationShroudingContact ShapeNumber of Positions LoadedNumber of PositionsContact Finish - PostContact Length - PostContact Length - PostStyleMounting TypeContact Length - MatingContact Length - MatingNumber of RowsConnector TypeContact Finish Thickness - MatingContact Finish Thickness - MatingInsulation Height [z]Insulation Height [z]Row Spacing - MatingRow Spacing - MatingInsulation ColorPitch - Mating [x]Pitch - Mating [x]Fastening TypeContact MaterialContact Finish Thickness - PostContact Finish Thickness - PostOverall Contact LengthOverall Contact Length
3M (TC)
151208-7422-RB
UL94 V-0
Male Pin
Gold
105 ░C
-55 °C
Solder
Unshrouded
Square
All
8
Tin
0.118 in
3 mm
Board to Board
Cable
Through Hole
Right Angle
3.86 mm
0.152 in
2
Header
30 Áin
0.76 Ám
0.165 in
4.2 mm
0.079 in
2 mm
Black
0.079 in
2 mm
Push-Pull
Copper Alloy
200 µin
5.08 µm
3M (TC)
151208-8422-RB
UL94 V-0
Male Pin
Gold
105 ░C
-55 °C
Solder
Unshrouded
Square
All
8
Tin
0.118 in
3 mm
Board to Board
Cable
Through Hole
3.86 mm
0.152 in
2
Header
30 Áin
0.76 Ám
0.06 in
1.52 mm
0.079 in
2 mm
Black
0.079 in
2 mm
Push-Pull
Copper Alloy
200 µin
5.08 µm
8.36 mm
0.329 in
3M (TC)
151208-8421-RB
UL94 V-0
Male Pin
Gold
105 ░C
-55 °C
Solder
Unshrouded
Square
All
8
Tin
0.118 in
3 mm
Board to Board
Cable
Through Hole
3.86 mm
0.152 in
2
Header
30 Áin
0.76 Ám
0.06 in
1.52 mm
0.079 in
2 mm
Black
0.079 in
2 mm
Push-Pull
Copper Alloy
200 µin
5.08 µm
7.8 mm
0.307 in
3M (TC)
151208-2320-RB
UL94 V-0
Male Pin
Gold
105 ░C
-55 °C
Solder
Unshrouded
Square
All
8
Tin
Surface Mount
3.3 mm
0.13 in
2
Header
30 Áin
0.76 Ám
0.06 in
1.52 mm
0.079 in
2 mm
Black
0.079 in
2 mm
Push-Pull
Copper Alloy
200 µin
5.08 µm
3M (TC)
151208-7422-TB
UL94 V-0
Male Pin
Gold
105 ░C
-55 °C
Solder
Unshrouded
Square
All
8
Tin-Lead
0.118 in
3 mm
Board to Board
Cable
Through Hole
Right Angle
3.86 mm
0.152 in
2
Header
30 Áin
0.76 Ám
0.165 in
4.2 mm
0.079 in
2 mm
Black
0.079 in
2 mm
Push-Pull
Copper Alloy
200 µin
5.08 µm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$

Description

General part information

151208 Series

Connector Header Through Hole, Right Angle 8 position 0.079" (2.00mm)

Documents

Technical documentation and resources

1512 Series

Datasheet

Datasheet

Datasheet
