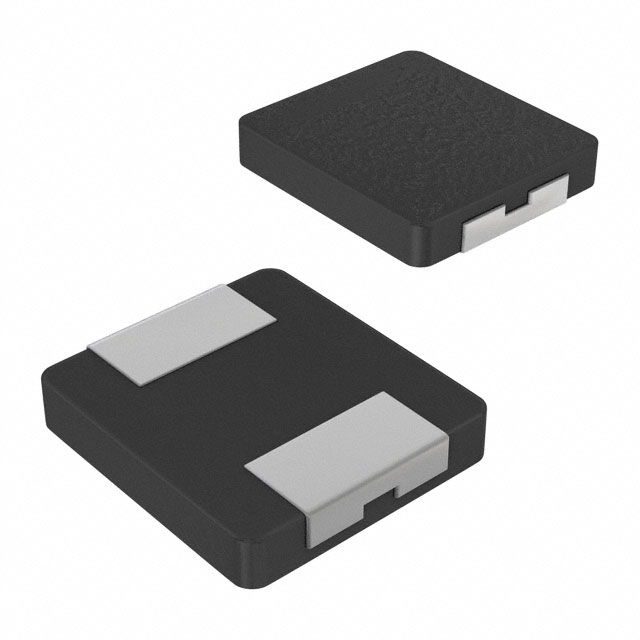

SRP4012TA-6R8M

Active

Bourns Inc.

SURFACE MOUNT POWER INDUCTOR, AEC-Q200 SRP4012TA SERIES, 6.8 H, 20%, SHIELDED, 0.36 OHM, 1.5 A ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Bourns Inc.

SURFACE MOUNT POWER INDUCTOR, AEC-Q200 SRP4012TA SERIES, 6.8 H, 20%, SHIELDED, 0.36 OHM, 1.5 A ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Part	Shielding	Inductance Frequency - Test	Inductance	Frequency - Self Resonant	Material - Core	Current Rating (Amps)	Ratings	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Size / Dimension [x]	Size / Dimension [y]	Type	Supplier Device Package	Current - Saturation (Isat)	DC Resistance (DCR) [Max]	Q @ Freq	Package / Case	Tolerance	Mounting Type	DC Resistance (DCR)
Bourns Inc. SRP4012TA-5R6M	Shielded	100 kHz	5.6 µH	30 MHz	Carbonyl Powder	1.7 A	AEC-Q200	1.2 mm	0.047 in	0.175 in 4.45 mm	0.16 in 4.06 mm	Drum Core Wirewound	2-SMD	2.3 A	208 mOhm	10 100 kHz	2-SMD	20 %	Surface Mount
Bourns Inc. SRP4012TA-100M	Shielded	100 kHz	10 µH	23 MHz	Carbonyl Powder	1.3 A	AEC-Q200	1.2 mm	0.047 in	0.175 in 4.45 mm	0.16 in 4.06 mm	Drum Core Wirewound	2-SMD	1.4 A		10 100 kHz	2-SMD	20 %	Surface Mount	463 mOhm
Bourns Inc. SRP4012TA-R36M	Shielded	100 kHz	360 nH	143 MHz	Carbonyl Powder	6.5 A	AEC-Q200	1.2 mm	0.047 in	0.175 in 4.45 mm	0.16 in 4.06 mm	Drum Core Wirewound	2-SMD	8.5 A		10 100 kHz	2-SMD	20 %	Surface Mount	18 mOhm
Bourns Inc. SRP4012TA-6R8M	Shielded	100 kHz	6.8 µH	28 MHz	Carbonyl Powder	1.5 A	AEC-Q200	1.2 mm	0.047 in	0.175 in 4.45 mm	0.16 in 4.06 mm	Drum Core Wirewound	2-SMD	1.7 A	360 mOhm	10 100 kHz	2-SMD	20 %	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6.8 µH Shielded Drum Core, Wirewound Inductor 1.5 A 360mOhm Max 2-SMD
