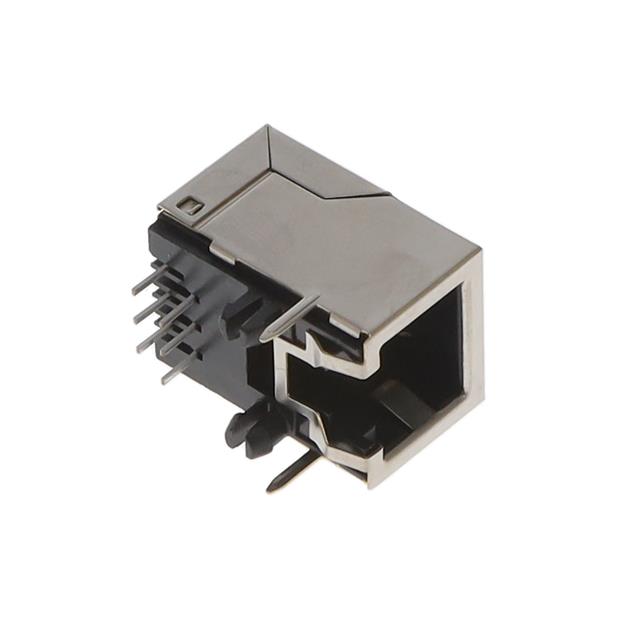

RJE051661310

Active

Amphenol ICC (Commercial Products)

CONN MOD JACK 6P6C R/A SHIELDED

Search across all available documentation for this part.

Active

Amphenol ICC (Commercial Products)

CONN MOD JACK 6P6C R/A SHIELDED

Technical Specifications

Parameters and characteristics for this part

Specification	RJE051661310

Connector Type	Jack
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Phosphor Bronze
Housing Material	Thermoplastic
LED Color	Does Not Contain LED
Mounting Type	Through Hole
Number of Ports	1
Number of Positions/Contacts	6p6c (RJ11, RJ12, RJ14, RJ25)
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	90 °
Shielding	Shielded
Tab Direction	Down
Termination	Solder

Part	Connector Type	Shielding	Orientation	Termination	Number of Ports	Contact Finish Thickness	Contact Finish Thickness	Number of Positions/Contacts	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish	Number of Rows	LED Color	Housing Material	Mounting Type	Contact Material	Tab Direction
Amphenol ICC (Commercial Products) RJE051660110	Jack	Unshielded	90 °	Solder	1	0.152 Ám	6 Áin	6p6c (RJ11 RJ12 RJ14 RJ25)	85 °C	-40 °C	Gold	1	Does Not Contain LED	Thermoplastic	Through Hole	Phosphor Bronze	Down
Amphenol ICC (Commercial Products) RJE051661310	Jack	Shielded	90 °	Solder	1	0.76 Ám	30 Áin	6p6c (RJ11 RJ12 RJ14 RJ25)	85 °C	-40 °C	Gold	1	Does Not Contain LED	Thermoplastic	Through Hole	Phosphor Bronze	Down
Amphenol ICC (Commercial Products) RJE051661410	Jack	Shielded	90 °	Solder	1	1.27 µm	50 µin	6p6c (RJ11 RJ12 RJ14 RJ25)	85 °C	-40 °C	Gold	1	Does Not Contain LED	Thermoplastic	Through Hole	Phosphor Bronze	Down

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Jack Modular Connector 6p6c (RJ11, RJ12, RJ14, RJ25) 90° Angle (Right) Shielded
