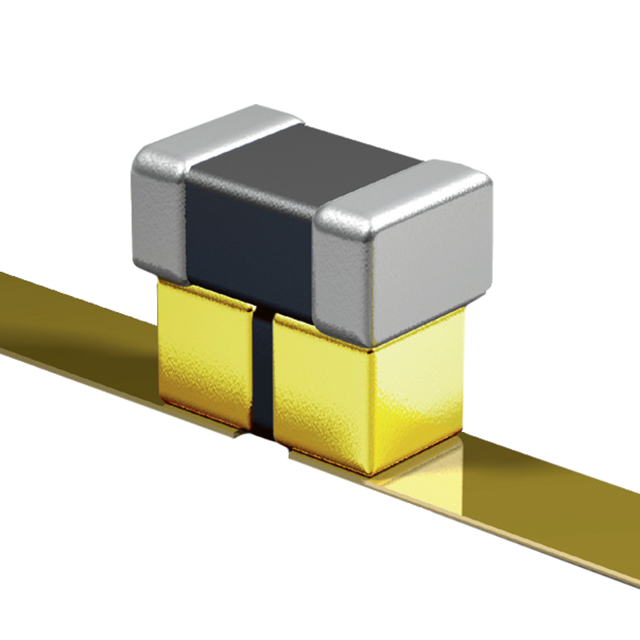

P62BNL820MA02636
ActiveKnowles Johanson Manufacturing
CAP ARRAY 82PF 10V X7R 0603
Deep-Dive with AI
Search across all available documentation for this part.
P62BNL820MA02636
ActiveKnowles Johanson Manufacturing
CAP ARRAY 82PF 10V X7R 0603
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | P62BNL820MA02636 |
|---|---|
| Capacitance | 100000 pF, 82 pF |
| Circuit Type | Bussed |
| Dielectric Material | Ceramic |
| Height - Seated (Max) [Max] [z] | 0.058 in |
| Height - Seated (Max) [Max] [z] | 1.47 mm |
| Mounting Type | Surface Mount |
| Number of Capacitors | 2 |
| Package / Case | 0603 (1608 Metric) |
| Size / Dimension [x] | 0.067 " |
| Size / Dimension [x] | 1.7 mm |
| Size / Dimension [y] | 0.8 mm |
| Size / Dimension [y] | 0.031 " |
| Supplier Device Package | 1505 Metric |
| Supplier Device Package | 0602 |
| Temperature Coefficient | X7R |
| Tolerance | 20 % |
| Voltage - Rated | 10 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 100 | $ 4.26 | |
| 200 | $ 4.00 | |||
| 300 | $ 3.87 | |||
| 500 | $ 3.73 | |||
| 700 | $ 3.64 | |||
| 1000 | $ 3.56 | |||
| 2500 | $ 3.38 | |||
Description
General part information
P62BNL Series
82pF, 0.1µF Bussed Capacitor 2 Array 10 V X7R 0603 (1608 Metric)
