1401043302KE

Active

METZ CONNECT USA Inc.

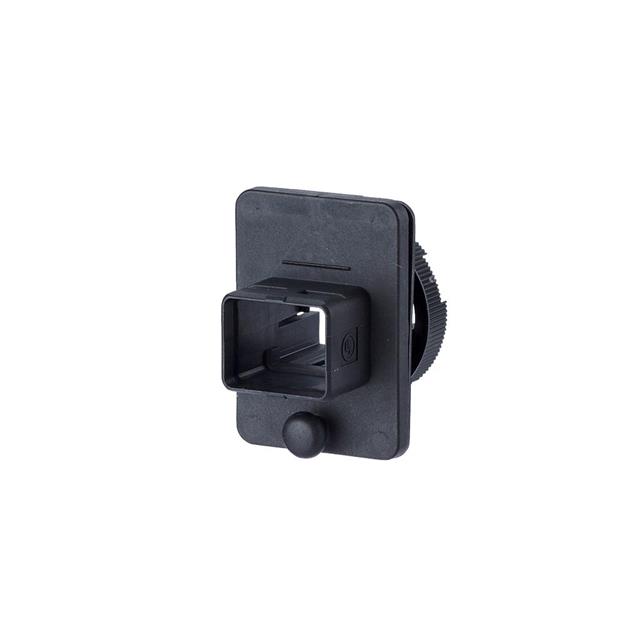

INDUSTRY IP67 V4 BULKHEAD

Search across all available documentation for this part.

Active

METZ CONNECT USA Inc.

INDUSTRY IP67 V4 BULKHEAD

Technical Specifications

Parameters and characteristics for this part

Specification	1401043302KE

Color	Black
Connector Type	Housing for Prewired RJ45 Cordset
Fastening Type	Push-Pull
Housing Material	Polyamide (PA), Nylon
Ingress Protection	IP67 - Dust Tight, Waterproof
Mating Cycles	750
Mounting Type	Free Hanging (In-Line)
Note	Plug Not Provided
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-40 °C
Shielding	Unshielded

Part	Ingress Protection	Note	Color	Mating Cycles	Connector Type	Housing Material	Shielding	Mounting Type	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]
METZ CONNECT USA Inc. 1401043302KE	IP67 - Dust Tight Waterproof	Plug Not Provided	Black	750	Housing for Prewired RJ45 Cordset	Polyamide (PA) Nylon	Unshielded	Free Hanging (In-Line)	Push-Pull	-40 °C	70 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Plug Housing Housing for Prewired RJ45 Cordset Modular Connector Push-Pull Black

Technical documentation and resources
