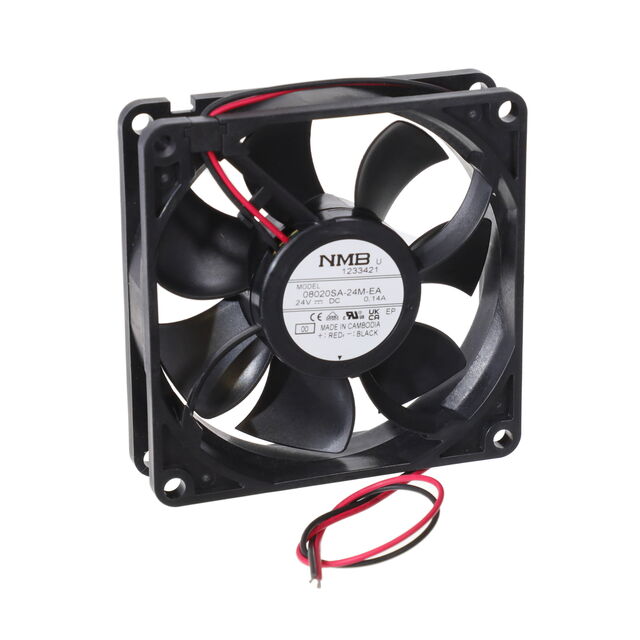

DC AXIAL FAN, 24 V, SQUARE, 80 MM, 20 MM, BALL BEARING, 39.9 CFM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Manufacturer Product Page EN

08020SA-24M-EA-00

Active

NMB TECHNOLOGIES

DC AXIAL FAN, 24 V, SQUARE, 80 MM, 20 MM, BALL BEARING, 39.9 CFM

Deep-Dive with AI

DocumentsDatasheet Manufacturer Product Page EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	08020SA-24M-EA-00

Air Flow	39.9 CFM
Air Flow	1.12 mł/min
Bearing Type	Ball
Current Rating (Amps)	0.09 A
Fan Type	Tubeaxial
Features	Auto Restart
Lifetime @ Temp.	40000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	37.5 dB(A)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	2.16 W
RPM	3700 RPM
Size / Dimension [x]	80 mm
Size / Dimension [y]	80 mm
Static Pressure	44.8 Pa
Static Pressure	0.18 in H2O
Termination	2 Wire Leads
Voltage - Rated	24 VDC
Voltage Range [Max]	27.6 VDC
Voltage Range [Min]	9 V
Width [y]	20 mm

08020SA Series

Part	Fan Type	Noise	Termination	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Current Rating (Amps)	Material - Blade	Voltage - Rated	Lifetime @ Temp.	Static Pressure	Static Pressure	Air Flow	Air Flow	Bearing Type	Power (Watts)	Material - Frame	RPM	Width [y]	Size / Dimension [y]	Size / Dimension [x]	Voltage Range [Min]	Voltage Range [Max]	Features	Weight	Weight
NMB TECHNOLOGIES 08020SA-24M-EL-00	Tubeaxial	37.5 dB(A)	3 Wire Leads	70 °C	70 °C	-10 °C	-10 °C	0.09 A	Plastic	24 VDC	40000 Hrs	44.8 Pa	0.18 in H2O	39.9 CFM	1.12 mł/min	Ball	2.16 W	Plastic	3700 RPM	20 mm	80 mm	80 mm	9 V	27.6 VDC	Auto Restart Locked Rotor Sensor
NMB TECHNOLOGIES 08020SA-24L-EL-00	Tubeaxial	34 dB(A)	3 Wire Leads	70 °C	70 °C	-10 °C	-10 °C	70 mA	Plastic	24 VDC	40000 Hrs	34.9 Pa	0.14 in H2O	36 CFM	1.01 m³/min	Ball	1.68 W	Plastic	3300 RPM	20 mm	80 mm	80 mm	9 V	27.6 VDC	Auto Restart Locked Rotor Sensor
NMB TECHNOLOGIES 08020SA-12J-AL-00	Tubeaxial	27 dB(A)	2 Wire Leads	70 °C	70 °C	-10 °C	-10 °C	50 mA	Plastic	12 VDC	40000 Hrs	27.4 Pa	0.11 in H2O	27.5 CFM	0.77 m³/min	Ball	600 mW	Plastic	2600 RPM	20 mm	80 mm	80 mm	6 VDC	13.8 VDC	Locked Rotor Sensor	0.176 lb	79.83 g
NMB TECHNOLOGIES 08020SA-12L-AA-00	Tubeaxial	34 dB(A)	2 Wire Leads	70 °C	70 °C	-10 °C	-10 °C	0.09 A	Plastic	12 VDC	40000 Hrs	42.3 Pa	0.17 in H2O	36 CFM	1.01 m³/min	Ball	1.08 W	Plastic	3300 RPM	20 mm	80 mm	80 mm	6 VDC	13.8 VDC		0.176 lb	79.83 g
NMB TECHNOLOGIES 08020SA-24J-AL-00	Tubeaxial	27 dB(A)	3 Wire Leads	70 °C	70 °C	-10 °C	-10 °C	50 mA	Plastic	24 VDC	40000 Hrs	22.4 Pa	0.09 in H2O	27.5 CFM	0.77 m³/min	Ball	1.2 W	Plastic	2600 RPM	20 mm	80 mm	80 mm	9 V	27.6 VDC	Auto Restart Locked Rotor Sensor
NMB TECHNOLOGIES 08020SA-24L-EA-00	Tubeaxial	34 dB(A)	2 Wire Leads	70 °C	70 °C	-10 °C	-10 °C	70 mA	Plastic	24 VDC	40000 Hrs	34.9 Pa	0.14 in H2O	36 CFM	1.01 m³/min	Ball	1.68 W	Plastic	3300 RPM	20 mm	80 mm	80 mm	9 V	27.6 VDC		0.176 lb	79.83 g
NMB TECHNOLOGIES 08020SA-24M-EA-00	Tubeaxial	37.5 dB(A)	2 Wire Leads	70 °C	70 °C	-10 °C	-10 °C	0.09 A	Plastic	24 VDC	40000 Hrs	44.8 Pa	0.18 in H2O	39.9 CFM	1.12 mł/min	Ball	2.16 W	Plastic	3700 RPM	20 mm	80 mm	80 mm	9 V	27.6 VDC	Auto Restart
NMB TECHNOLOGIES 08020SA-12M-AA-00	Tubeaxial	37.5 dB(A)	2 Wire Leads	70 °C	70 °C	-10 °C	-10 °C		Plastic	12 VDC	40000 Hrs	52.3 Pa	0.21 in H2O	40 CFM	1.12 mł/min	Ball	1.56 W	Plastic	3700 RPM	20 mm	80 mm	80 mm	6 VDC	13.8 VDC		0.176 lb	79.83 g
NMB TECHNOLOGIES 08020SA-12M-EA-00	Tubeaxial	37.5 dB(A)	2 Wire Leads	70 °C	70 °C	-10 °C	-10 °C		Plastic	12 VDC	40000 Hrs	52.3 Pa	0.21 in H2O	39.9 CFM	1.12 mł/min	Ball	1.56 W	Plastic	3700 RPM	20 mm	80 mm	80 mm			Auto Restart
NMB TECHNOLOGIES 08020SA-12L-AL-00	Tubeaxial	34 dB(A)	3 Wire Leads	70 °C	70 °C	-10 °C	-10 °C	0.09 A	Plastic	12 VDC	40000 Hrs	42.3 Pa	0.17 in H2O	36 CFM	1.01 m³/min	Ball	1.08 W	Plastic	3300 RPM	20 mm	80 mm	80 mm	6 VDC	13.8 VDC	Locked Rotor Sensor	0.176 lb	79.83 g
