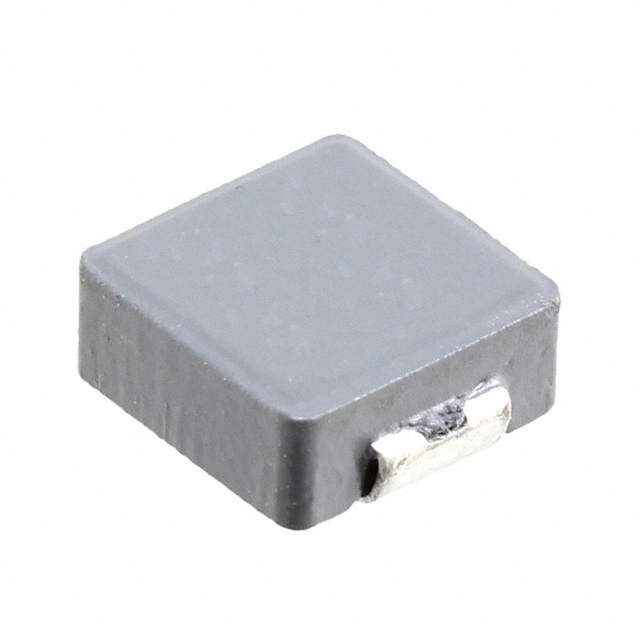

SRP7028A-6R8M
ActiveBourns Inc.
POWER INDUCTOR (SMD), 6.8 ΜH, 4.5 A, SHIELDED, 8 A, SRP7028A SERIES
Deep-Dive with AI
Search across all available documentation for this part.
SRP7028A-6R8M
ActiveBourns Inc.
POWER INDUCTOR (SMD), 6.8 ΜH, 4.5 A, SHIELDED, 8 A, SRP7028A SERIES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SRP7028A-6R8M |
|---|---|
| Current - Saturation (Isat) | 8 A |
| Current Rating (Amps) | 4.5 A |
| Frequency - Self Resonant | 18 MHz |
| Height - Seated (Max) | 3 mm |
| Height - Seated (Max) [Max] | 0.118 in |
| Inductance | 6.8 µH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Carbonyl Powder |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Q @ Freq | 100 kHz, 20 |
| Ratings | AEC-Q200 |
| Shielding | Shielded |
| Size / Dimension [x] | 0.287 in |
| Size / Dimension [x] | 7.3 mm |
| Size / Dimension [y] | 6.6 mm |
| Size / Dimension [y] | 0.26 " |
| Tolerance | 20 % |
| Type | Wirewound, Drum Core |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.91 | |
| 10 | $ 0.77 | |||
| 25 | $ 0.70 | |||
| 50 | $ 0.66 | |||
| 100 | $ 0.54 | |||
| 250 | $ 0.50 | |||
| 500 | $ 0.49 | |||
| Digi-Reel® | 1 | $ 0.91 | ||
| 10 | $ 0.77 | |||
| 25 | $ 0.70 | |||
| 50 | $ 0.66 | |||
| 100 | $ 0.54 | |||
| 250 | $ 0.50 | |||
| 500 | $ 0.49 | |||
| Tape & Reel (TR) | 1000 | $ 0.49 | ||
| Newark | Each (Supplied on Full Reel) | 1000 | $ 0.68 | |
| 2000 | $ 0.62 | |||
| 4000 | $ 0.56 | |||
| 6000 | $ 0.54 | |||
| 10000 | $ 0.52 | |||
Description
General part information
SRP7028A Series
6.8 µH Shielded Drum Core, Wirewound Inductor 4.5 A 60mOhm Max Nonstandard
