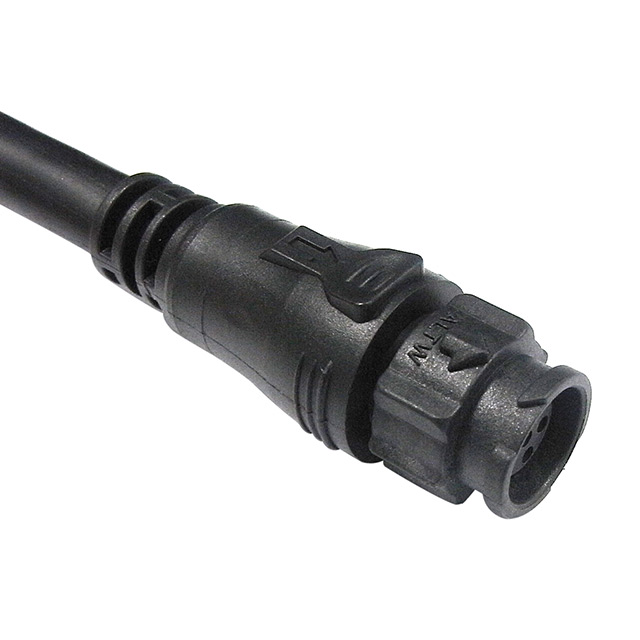

CBD-08AMFM-QL8F01

Active

Amphenol LTW

X-LOK, MIDDLE SIZE, PLASTIC, 10A+5A, 08 PINS, MALE CONNECTOR, FEMALE CONTACT, STRAIGHT, PUSH LOCK, OVERMOLDED, LENGTH 1000MM, IP

Search across all available documentation for this part.

Active

Amphenol LTW

X-LOK, MIDDLE SIZE, PLASTIC, 10A+5A, 08 PINS, MALE CONNECTOR, FEMALE CONTACT, STRAIGHT, PUSH LOCK, OVERMOLDED, LENGTH 1000MM, IP

Technical Specifications

Parameters and characteristics for this part

Specification	CBD-08AMFM-QL8F01

1st Connector Gender	Female Sockets
1st Connector Mounting Type	Free Hanging (In-Line)
1st Connector Number of Positions	8
1st Connector Number of Positions Loaded	All
1st Connector Orientation [custom]	Keyed
1st Connector Shell Size - Insert	C
1st Connector Type	Plug
2nd Connector Type	Wire Leads
Assembly Configuration	Standard
Cable Material	Polyvinyl Chloride (PVC)
Cable Type	Round
Color	Black
Ingress Protection	IP68 - Dust Tight, Waterproof; NMEA 2000
Length [x]	1 m
Length [x]	3.28 ft
Shielding	Shielded
Usage	Industrial Environments

Part	Cable Type	Color	1st Connector Shell Size - Insert	1st Connector Number of Positions	Assembly Configuration	1st Connector Mounting Type	2nd Connector Type	Usage	Cable Material	1st Connector Type	Ingress Protection	Shielding	1st Connector Orientation [custom]	1st Connector Number of Positions Loaded	Length [x]	Length [x]	1st Connector Gender
Amphenol LTW CBD-08AMFM-QL8F01	Round	Black	C	8	Standard	Free Hanging (In-Line)	Wire Leads	Industrial Environments	Polyvinyl Chloride (PVC)	Plug	IP68 - Dust Tight Waterproof; NMEA 2000	Shielded	Keyed	All	1 m	3.28 ft	Female Sockets

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Circular Cable Assembly Shielded 3.28' (1.00m)
