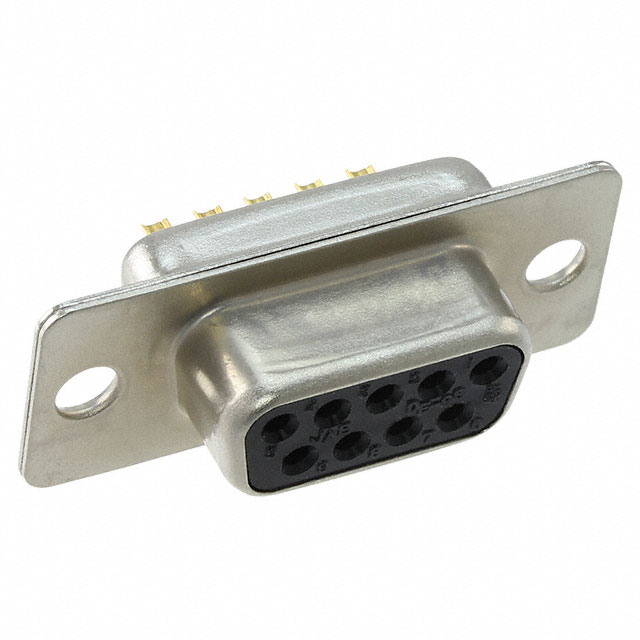

DE-9SF-N

Active

JAE Electronics

CONN D-SUB RCPT 9POS PNL MNT

Search across all available documentation for this part.

Active

JAE Electronics

CONN D-SUB RCPT 9POS PNL MNT

Technical Specifications

Parameters and characteristics for this part

Specification	DE-9SF-N

Color	Black
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Form	Stamped
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	5 A
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Features	Shielded
Flange Feature	Housing/Shell (Unthreaded)
Material Flammability Rating	UL94 V-0
Number of Positions	9
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout [custom]	DE, E
Shell Size, Connector Layout [custom]	1
Wire Gauge	20 AWG

Part	Dielectric Material	Number of Rows	Connector Type	Flange Feature	Contact Type	Operating Temperature [Max]	Operating Temperature [Min]	Connector Style	Material Flammability Rating	Contact Form	Contact Finish	Number of Positions	Contact Material	Color	Mounting Type	Termination	Current Rating (Amps)	Shell Material, Finish	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Wire Gauge	Features	Backset Spacing	Backset Spacing	Flange Feature
JAE Electronics DE-9SF-T-N-S1E	Polybutylene Terephthalate (PBT) Glass Filled	2	Receptacle Female Sockets	Housing/Shell (Unthreaded)	Signal	105 ░C	-55 °C	D-Sub	UL94 V-0	Stamped	Gold	9	Copper Alloy	Black	Through Hole	Solder	5 A	Nickel Plated Steel	DE E	1
JAE Electronics DE-9SF-N	Polybutylene Terephthalate (PBT) Glass Filled	2	Receptacle Female Sockets	Housing/Shell (Unthreaded)	Signal	105 ░C	-55 °C	D-Sub	UL94 V-0	Stamped	Gold	9	Copper Alloy	Black			5 A	Nickel Plated Steel	DE E	1	20 AWG	Shielded
JAE Electronics DE-9SA-NR	Polybutylene Terephthalate (PBT) Glass Filled	2	Receptacle Female Sockets	Housing/Shell	Signal	105 ░C	-55 °C	D-Sub	UL94 V-0	Stamped	Gold	9	Copper Alloy	Black	Through Hole Right Angle	Solder	5 A	Steel Zinc Plated	DE E	1			0.283 in	7.2 mm	2.6 M

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

9 Position D-Sub Receptacle, Female Sockets Connector
