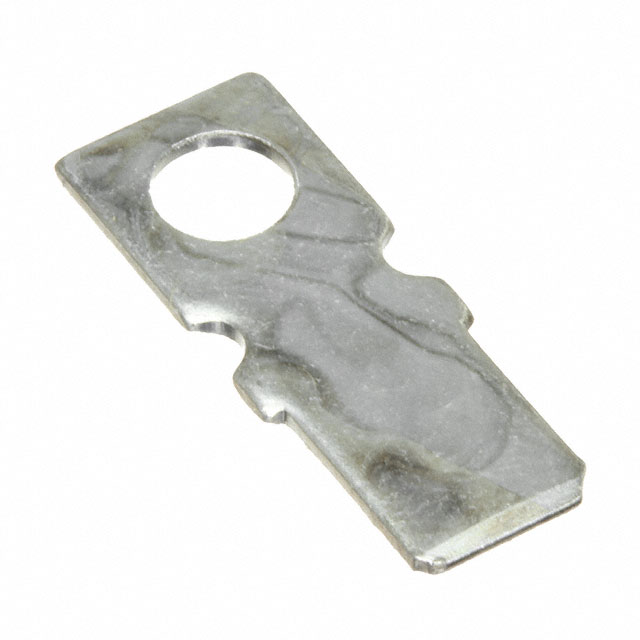

07-8-250
Active3M (TC)
MALE TAB (RING TONGUE)
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
07-8-250
Active3M (TC)
MALE TAB (RING TONGUE)
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 07-8-250 |
|---|---|
| Gender | Male |
| Insulation | Non-Insulated |
| Length - Overall [x] | 20.32 mm |
| Length - Overall [x] | 0.8 in |
| Mounting Type | Board, Chassis |
| Tab Thickness | 0.03 in |
| Tab Thickness | 0.76 mm |
| Tab Width | 6.35 mm |
| Tab Width | 0.25 in |
| Terminal Type | Flat Blade |
| Termination | Rivet, Screw, Stud |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
07-8 Series
0.250" (6.35mm) Quick Connect Male Screw, Rivet, Stud Connector Non-Insulated
