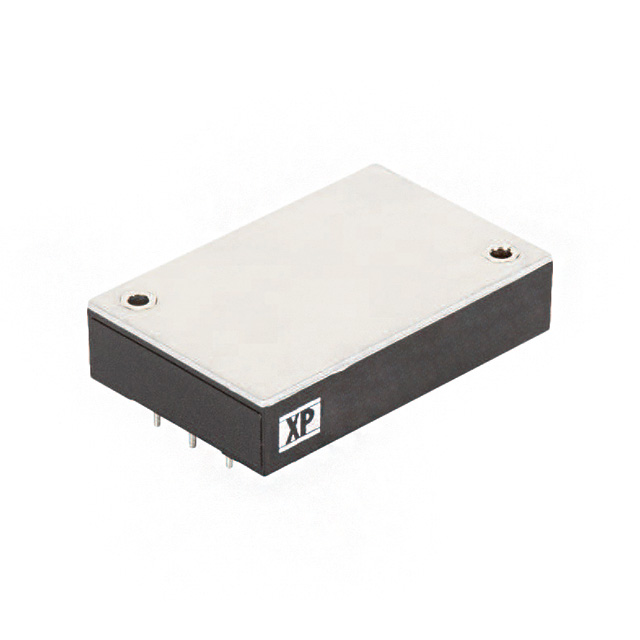

RDF5072WS12

Active

XP POWER

DC DC CONVERTER 12V 50W

Search across all available documentation for this part.

Active

XP POWER

DC DC CONVERTER 12V 50W

Technical Specifications

Parameters and characteristics for this part

Part	Power (Watts)	Current - Output (Max) [Max]	Mounting Type	Voltage - Input (Min) [Min]	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Isolation	Number of Outputs	Supplier Device Package	Type	Features	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Efficiency	Voltage - Output 1	Voltage - Input (Max) [Max]	Package / Case
XP POWER RDF5072WS05	30 W	6 A	Through Hole	14 V	ITE (Commercial) Railway	100 °C	-40 °C	1.5 kV	1	Quarter Brick	Isolated Module	OCP OTP OVP Remote On/Off UVLO	57.9 mm	2.28 in	1.45 in	12.7 mm	36.8 mm	0.5 in	83 %	5 V	160 V	Quarter Brick
XP POWER RDF5072WS48	50 W	1.05 A	Through Hole	14 V	ITE (Commercial) Railway	100 °C	-40 °C	1.5 kV	1	Quarter Brick	Isolated Module	OCP OTP OVP Remote On/Off UVLO	57.9 mm	2.28 in	1.45 in	12.7 mm	36.8 mm	0.5 in	88 %	48 V	160 V	Quarter Brick
XP POWER RDF5072WS24	50 W	2.1 A	Through Hole	14 V	ITE (Commercial) Railway	100 °C	-40 °C	1.5 kV	1	Quarter Brick	Isolated Module	OCP OTP OVP Remote On/Off UVLO	57.9 mm	2.28 in	1.45 in	12.7 mm	36.8 mm	0.5 in	89 %	24 V	160 V	Quarter Brick
XP POWER RDF5072WS12	50 W	4.2 A	Through Hole	14 V	ITE (Commercial) Railway	100 °C	-40 °C	1.5 kV	1	Quarter Brick	Isolated Module	OCP OTP OVP Remote On/Off UVLO	57.9 mm	2.28 in	1.45 in	12.7 mm	36.8 mm	0.5 in	87 %	12 V	160 V	Quarter Brick

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Isolated Module DC DC Converter 1 Output 12V 4.2A 14V - 160V Input
