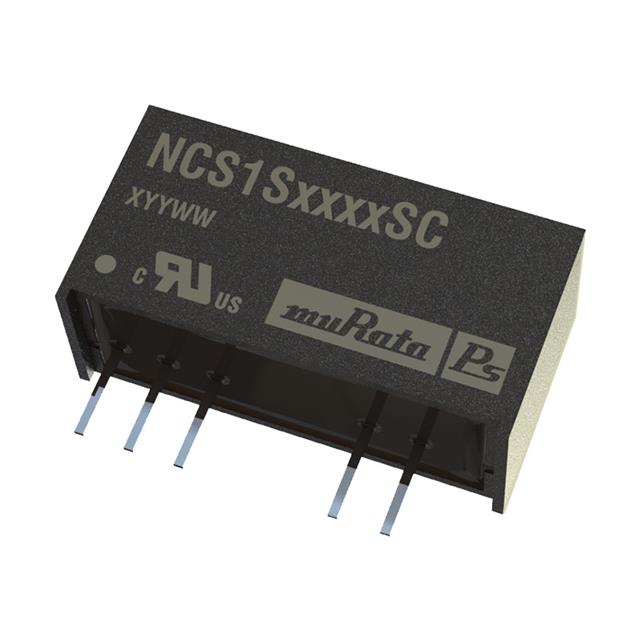

NCS1S2412SC - NCS1S1203SC

NCS1S2412SC

Active
Murata Power Solutions Inc.

ISOLATED BOARD MOUNT DC/DC CONVERTER, SIP, FIXED, THROUGH HOLE, 1 W, 12 V, 83 MA ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet3D Product Image EN+2
NCS1S2412SC - NCS1S1203SC

NCS1S2412SC

Active
Murata Power Solutions Inc.

ISOLATED BOARD MOUNT DC/DC CONVERTER, SIP, FIXED, THROUGH HOLE, 1 W, 12 V, 83 MA ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet3D Product Image EN+2

Technical Specifications

Parameters and characteristics for this part

SpecificationNCS1S2412SC
ApplicationsITE (Commercial)
Current - Output (Max) [Max]83 mA
Efficiency83 %
FeaturesSCP
Mounting TypeThrough Hole
Number of Outputs1
Operating Temperature [Max]105 ░C
Operating Temperature [Min]-40 °C
Package / Case7-SIP Module, 5 Leads
Size / Dimension [x]0.86 in
Size / Dimension [x]21.9 mm
Size / Dimension [y]0.32 in
Size / Dimension [y]8.2 mm
Size / Dimension [z]0.45 "
Size / Dimension [z]11.3 mm
TypeIsolated Module
Voltage - Input (Max) [Max]36 V
Voltage - Input (Min) [Min]9 V
Voltage - Isolation1000 V
Voltage - Output 112 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTube 1$ 8.46
5$ 8.42
10$ 8.36
25$ 8.27
50$ 8.06
100$ 7.66
250$ 7.17
500$ 6.68
1000$ 6.26
NewarkEach 1$ 11.34
5$ 11.29
10$ 11.23
25$ 11.14
50$ 10.92
100$ 10.50

Description

General part information

NCS1S Series

Isolated Module DC DC Converter 1 Output 12V 83mA 9V - 36V Input
