CD411699C
ActiveDIODE MODULE, 1.6 KV, 100 A, 1.55 V, DUAL SERIES, MODULE, 3 PINS
Deep-Dive with AI
Search across all available documentation for this part.
CD411699C
ActiveDIODE MODULE, 1.6 KV, 100 A, 1.55 V, DUAL SERIES, MODULE, 3 PINS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CD411699C |
|---|---|
| Current - Average Rectified (Io) (per Diode) | 100 A |
| Current - Reverse Leakage @ Vr | 8 mA |
| Diode Configuration | 1 Pair Series Connection |
| Mounting Type | Chassis Mount |
| Operating Temperature - Junction [Max] | 150 °C |
| Operating Temperature - Junction [Min] | -40 °C |
| Package / Case | Module |
| Speed | Standard Recovery >500ns |
| Speed | 200 mA |
| Technology | Standard |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Newark | Each | 1 | $ 41.54 | |
| 5 | $ 36.26 | |||
| 10 | $ 34.46 | |||
Description
General part information
CD411699 Series

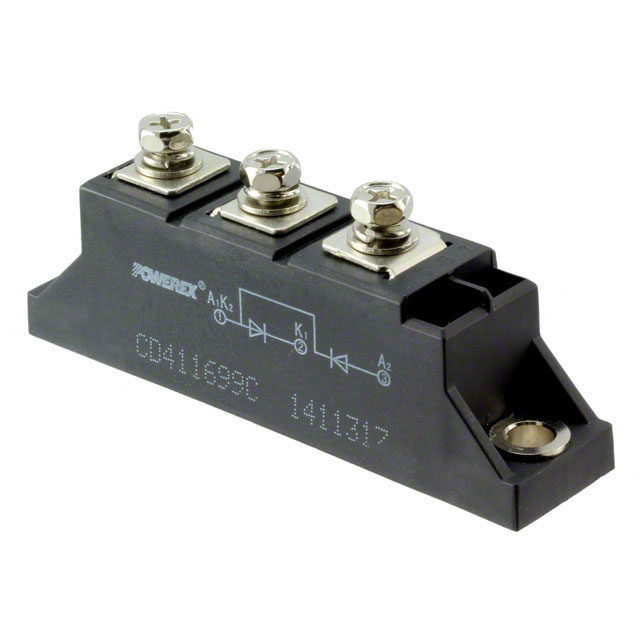

The CD411699C is an isolated dual Diode Module designed for use in applications requiring rectification and isolated packaging. The device is isolated for easy mounting with other components on a common heat-sink. It is suitable for bridge circuits, AC and DC motor drives, welders, battery supplies, large IGBT circuit front ends, lighting control, heat and temperature control applications.
