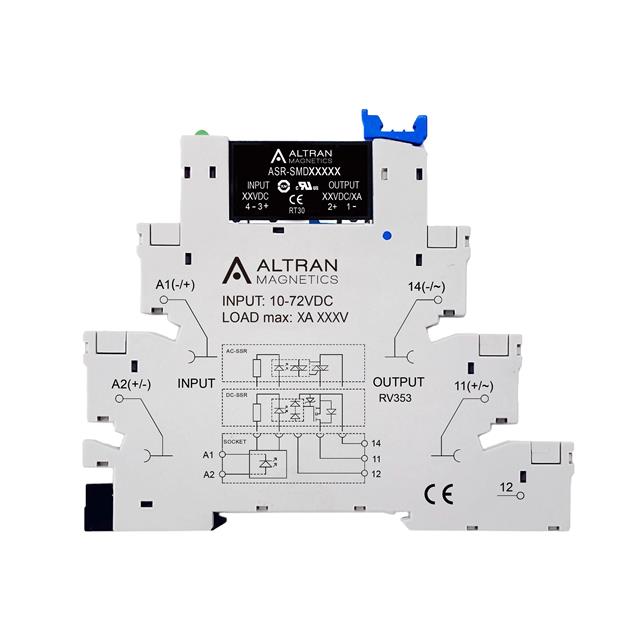

ASR-SMD48D0.1T

Active

Altran Magnetics, LLC

SSR RELAY SPST-NO 100MA 3-58V

Search across all available documentation for this part.

Active

Altran Magnetics, LLC

SSR RELAY SPST-NO 100MA 3-58V

Technical Specifications

Parameters and characteristics for this part

Part	Voltage - Input	Termination Style	Output Type	Package / Case	Load Current	Supplier Device Package	Operating Temperature [Min]	Operating Temperature [Max]	Approval Agency	Mounting Type	Voltage - Load [Min]	Voltage - Load [Max]
Altran Magnetics, LLC ASR-SMD48D0.1R	24 V	PC Pin	DC	4-SIP	100 mA	4-SIP	-30 ░C	80 C	CE cURus TUV	Through Hole	3 V	58 V
Altran Magnetics, LLC ASR-SMD48D3P-K	12 VDC	Screw Terminal	DC	Module	3 A		-30 ░C	80 C	CE cURus TUV	DIN Rail	3 V	58 V
Altran Magnetics, LLC ASR-SMD24D4R-K	24 V	Screw Terminal	DC	Module	4 A		-30 ░C	80 C	CE cURus TUV	DIN Rail	3 V	28 V
Altran Magnetics, LLC ASR-SMD24D4N-K	5 VDC	Screw Terminal	DC	Module	4 A		-30 ░C	80 C	CE cURus TUV	DIN Rail	3 V	28 V
Altran Magnetics, LLC ASR-SMD48D0.1T	60 VDC	PC Pin	DC	4-SIP	100 mA	4-SIP	-30 ░C	80 C		Through Hole	3 V	58 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	16	$ 11.17

General part information

Solid State SPST-NO (1 Form A) 4-SIP
