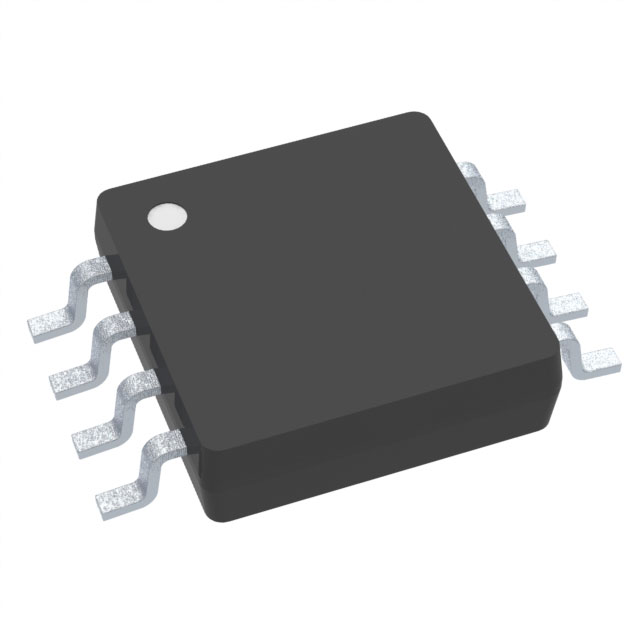

XTR117AIDGKR
ActiveXTR117 4-20MA CURRENT LOOP TRANSMITTER
Deep-Dive with AI
Search across all available documentation for this part.
XTR117AIDGKR
ActiveXTR117 4-20MA CURRENT LOOP TRANSMITTER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | XTR117AIDGKR |
|---|---|
| Current - Supply | 20 mA |
| Input Type | Voltage |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 8-MSOP, 8-TSSOP |
| Package / Case | 3 mm |
| Package / Case [custom] | 0.118 in |
| Type | Current Transmitter |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.35 | |
| 10 | $ 2.11 | |||
| 25 | $ 1.99 | |||
| 100 | $ 1.70 | |||
| 250 | $ 1.60 | |||
| 500 | $ 1.40 | |||
| 1000 | $ 1.16 | |||
| Digi-Reel® | 1 | $ 2.35 | ||
| 10 | $ 2.11 | |||
| 25 | $ 1.99 | |||
| 100 | $ 1.70 | |||
| 250 | $ 1.60 | |||
| 500 | $ 1.40 | |||
| 1000 | $ 1.16 | |||
| Tape & Reel (TR) | 2500 | $ 1.08 | ||
| 5000 | $ 1.04 | |||
| Texas Instruments | LARGE T&R | 1 | $ 1.77 | |
| 100 | $ 1.46 | |||
| 250 | $ 1.05 | |||
| 1000 | $ 0.79 | |||
Description
General part information
XTR117 Series
The XTR117 is a precision current output converter designed to transmit analog 4-mA-to-20-mA signals over an industry-standard current loop. The device provides accurate current scaling and output current limit functions.
The on-chip voltage regulator (5 V) can be used to power external circuitry. A current return pin (I RET) senses any current used in external circuitry to provide an accurate control of the output current.
The XTR117 is a fundamental building block of smart sensors using 4-mA-to-20-mA current transmission.
