1755558

Active

Phoenix Contact

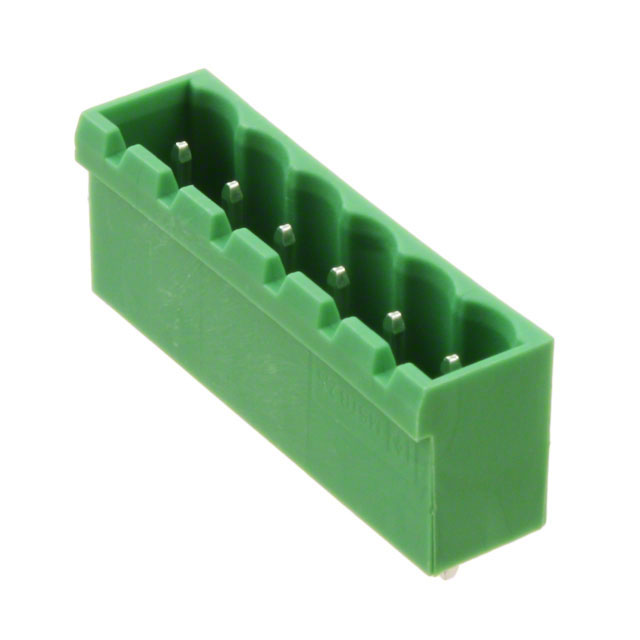

CONN SHROUDED HEADER (4 SIDES) HDR 6 POS 5MM SOLDER ST TOP ENTRY THRU-HOLE CARDBOARD

Search across all available documentation for this part.

Active

Phoenix Contact

CONN SHROUDED HEADER (4 SIDES) HDR 6 POS 5MM SOLDER ST TOP ENTRY THRU-HOLE CARDBOARD

Technical Specifications

Parameters and characteristics for this part

Specification	1755558

Color	Green
Contact Mating Finish	Tin
Contact Tail Length	0.154 "
Contact Tail Length	3.9 mm
Current - IEC	12 A
Current - UL	12 A
Header Orientation	Vertical
Housing Material	Polyamide (PA), Nylon
Insulation Height	0.472 in
Insulation Height	12 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Levels	1
Number of Positions	6
Pitch [x]	5 mm
Pitch [x]	0.197 in
Positions Per Level	6
Termination Style	Solder
Type	Header, Male Pins, Shrouded (4 Side)
Voltage - IEC	400 V
Voltage - UL	300 V

Pluggable Terminal Blocks 24 Pos 5mm pitch Through Hole Header

Part	Current - UL	Current - IEC	Color	Number of Levels	Voltage - IEC	Insulation Height	Insulation Height	Mounting Type	Contact Tail Length	Contact Tail Length	Termination Style	Voltage - UL	Contact Mating Finish	Type	Pitch [x]	Pitch [x]	Header Orientation	Number of Positions	Material Flammability Rating	Housing Material	Positions Per Level
Phoenix Contact 1746787	12 A	12 A	Black	1	250 V	0.472 in	12 mm	Through Hole	0.154 "	3.9 mm	Solder	300 V	Tin	Header Male Pins Shrouded (4 Side)	5 mm	0.197 in	Vertical	24
Phoenix Contact 1755558	12 A	12 A	Green	1	400 V	0.472 in	12 mm	Through Hole	0.154 "	3.9 mm	Solder	300 V	Tin	Header Male Pins Shrouded (4 Side)	5 mm	0.197 in	Vertical	6	UL94 V-0	Polyamide (PA) Nylon	6
Phoenix Contact 1741847		12 A	Black	1	250 V	0.472 in	12 mm	Through Hole	0.154 "	3.9 mm	Solder		Tin	Header Male Pins Shrouded (4 Side)	5.08 mm	0.2 in	Vertical	9			9
