Technical Specifications
Parameters and characteristics for this part

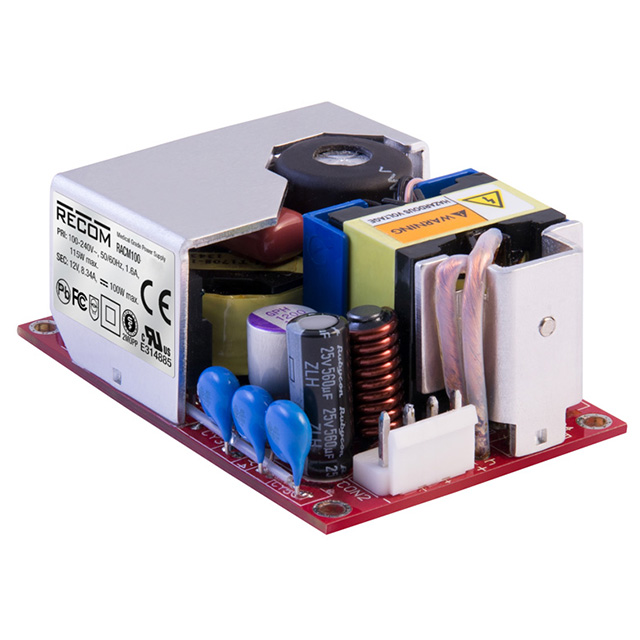

| Specification | RACM100-48S/OF |
|---|---|
| Applications | Medical |
| Approval Agency | CE, cURus |
| Current - Output 1 | 2.09 A |
| Efficiency | 91 % |
| Minimum Load Required | False |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Power (Watts) | 100 W |
| Size / Dimension [x] | 3.6 in |
| Size / Dimension [x] | 91.4 mm |
| Size / Dimension [y] | 2.44 " |
| Size / Dimension [y] | 62 mm |
| Size / Dimension [z] | 1.54 " |
| Size / Dimension [z] | 39.2 mm |
| Type | Open Frame |
| Voltage - Isolation | 4000 V |
| Voltage - Output 1 | 48 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
RACM100-48 Series
Switching Power Supplies 100W 85-264Vin 24Vout 4.17A
