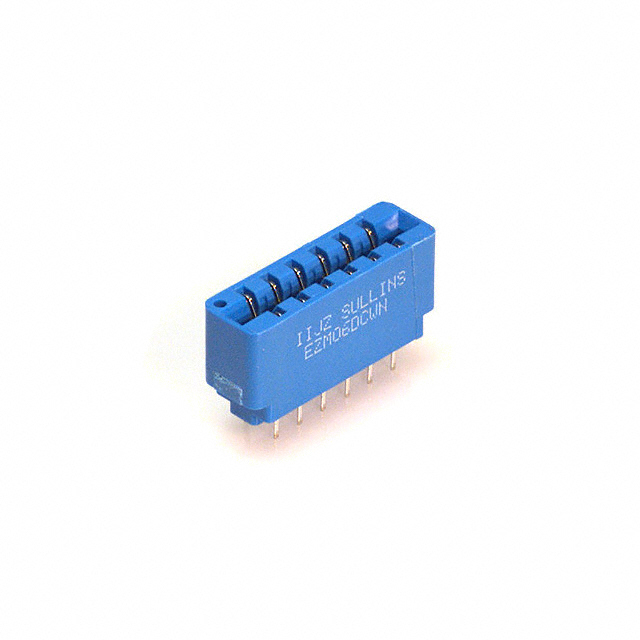

EBM06DCWN

Active

Sullins Connector Solutions

CONN EDGE DUAL FMALE 12POS 0.156

Deep-Dive with AI

Search across all available documentation for this part.

EBM06DCWN

Active

Sullins Connector Solutions

CONN EDGE DUAL FMALE 12POS 0.156

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EBM06DCWN

Card Thickness	0.062 in
Card Thickness	1.57 mm
Card Type	Non Specified - Dual Edge
Color	Blue
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Phosphor Bronze
Contact Type	Hairpin Bellows
Gender	Female
Material - Insulation	Polybutylene Terephthalate (PBT)
Mounting Type	Through Hole
Number of Positions	12
Number of Positions/Bay/Row [custom]	6
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Dual
Termination	Solder

EBM06 Series

...

Part	Read Out	Card Type	Gender	Termination	Contact Finish	Material - Insulation	Contact Type	Pitch [x]	Pitch [x]	Operating Temperature [Max]	Operating Temperature [Min]	Color	Number of Rows	Mounting Type	Contact Material	Number of Positions	Card Thickness	Card Thickness	Number of Positions/Bay/Row [custom]	Contact Finish Thickness	Contact Finish Thickness	Flange Feature [diameter]	Flange Feature [diameter]	Flange Feature	Flange Feature	Flange Feature	Features
Sullins Connector Solutions EBM06DTBN-S664	Dual	Non Specified - Dual Edge	Female	Solder	Gold	Polybutylene Terephthalate (PBT)	Loop Bellows	0.156 in	3.96 mm	125 °C	-65 ░C	Blue	2	Through Hole Right Angle	Phosphor Bronze	12	3.18 mm	0.125 in	6	10 Áin	0.25 Ám
Sullins Connector Solutions EBM06DCWN	Dual	Non Specified - Dual Edge	Female	Solder	Gold	Polybutylene Terephthalate (PBT)	Hairpin Bellows	0.156 in	3.96 mm	125 °C	-65 ░C	Blue	2	Through Hole	Phosphor Bronze	12	1.57 mm	0.062 in	6	10 Áin	0.25 Ám
Sullins Connector Solutions EBM06DTMH-S189	Dual	Non Specified - Dual Edge	Female	Solder	Gold	Polybutylene Terephthalate (PBT)	Loop Bellows	0.156 in	3.96 mm	125 °C	-65 ░C	Blue	2	Through Hole Right Angle	Phosphor Bronze	12	1.57 mm	0.062 in	6	10 Áin	0.25 Ám	0.125 in	3.18 mm	Top Mount Opening Unthreaded
Sullins Connector Solutions EBM06DRSS	Dual	Non Specified - Dual Edge	Female	Solder	Gold	Polybutylene Terephthalate (PBT)	Loop Bellows	0.156 in	3.96 mm	125 °C	-65 ░C	Blue	2	Through Hole	Phosphor Bronze	12	1.57 mm	0.062 in	6	10 Áin	0.25 Ám	0.125 in	3.18 mm	Side Mount Opening Unthreaded
Sullins Connector Solutions EBM06DCCD-S189	Dual	Non Specified - Dual Edge	Female	Solder	Gold	Polybutylene Terephthalate (PBT)	Hairpin Bellows	0.156 in	3.96 mm	125 °C	-65 ░C	Blue	2	Through Hole Right Angle	Phosphor Bronze	12	1.57 mm	0.062 in	6	10 Áin	0.25 Ám			Flush Mount Top Opening Unthreaded	0.125 "	3.18 mm
Sullins Connector Solutions EBM06DCST-S288	Dual	Non Specified - Dual Edge	Female	Solder	Gold	Polybutylene Terephthalate (PBT)	Hairpin Bellows	0.156 in	3.96 mm	125 °C	-65 ░C	Blue	2	Board Edge Straddle Mount	Phosphor Bronze	12	1.57 mm	0.062 in	6	10 Áin	0.25 Ám			4-40 Flush Mount Threaded Insert Top Opening			Card Extender
Sullins Connector Solutions EBM06DRST-S288	Dual	Non Specified - Dual Edge	Female	Solder	Gold	Polybutylene Terephthalate (PBT)	Loop Bellows	0.156 in	3.96 mm	125 °C	-65 ░C	Blue	2	Board Edge Straddle Mount	Phosphor Bronze	12	1.57 mm	0.062 in	6	10 Áin	0.25 Ám			4-40 Flush Mount Threaded Insert Top Opening			Card Extender
Sullins Connector Solutions EBM06DCAT	Dual	Non Specified - Dual Edge	Female	Solder	Gold	Polybutylene Terephthalate (PBT)	Hairpin Bellows	0.156 in	3.96 mm	125 °C	-65 ░C	Blue	2	Through Hole Right Angle	Phosphor Bronze	12	1.57 mm	0.062 in	6	10 Áin	0.25 Ám			4-40 Flush Mount Threaded Insert Top Opening
Sullins Connector Solutions EBM06DCBI	Dual	Non Specified - Dual Edge	Female	Solder	Gold	Polybutylene Terephthalate (PBT)	Hairpin Bellows	0.156 in	3.96 mm	125 °C	-65 ░C	Blue	2	Through Hole Right Angle	Phosphor Bronze	12	1.57 mm	0.062 in	6	10 Áin	0.25 Ám			4-40 Threaded Insert Top Mount Opening
Sullins Connector Solutions EBM06DSEF-S243	Single	Non Specified - Dual Edge	Female	Solder Eyelet(s)	Gold	Polybutylene Terephthalate (PBT)	Full Bellows	0.156 in	3.96 mm	125 °C	-65 ░C	Blue	2		Phosphor Bronze	12	1.57 mm	0.062 in	6	10 Áin	0.25 Ám	0.116 in	2.95 mm	Floating Bobbin Top Mount Opening

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 4.93
		10	$ 3.77
		25	$ 3.40
		40	$ 3.22
		80	$ 2.99
		230	$ 2.67
		440	$ 2.50
		945	$ 2.31
		2400	$ 2.11

Description

General part information

EBM06 Series

12 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Blue

Documents

Technical documentation and resources

No documents available
