5100U1 0081000

Active

Belden Inc.

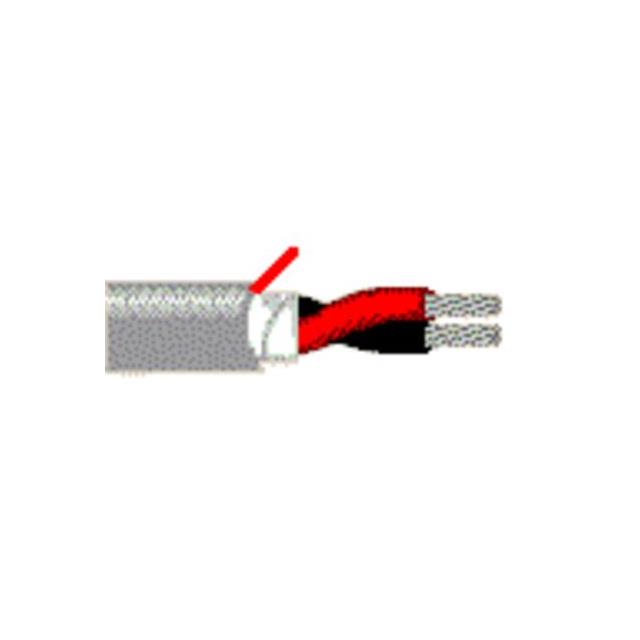

CABLE 2COND 14AWG GRAY

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 2COND 14AWG GRAY

Technical Specifications

Parameters and characteristics for this part

Specification	5100U1 0081000

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Features	Rip Cord, Water-Blocked
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.025 in
Jacket (Insulation) Thickness	0.635 mm
Jacket Color	Gray
Length	1000 ft
Length	304.8 m
Number of Conductors	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-20 C
Ratings	UL Style CL3
Usage	Sound, Security
Voltage	300 V
Wire Gauge	13.5 AWG

Part	Operating Temperature [Min]	Operating Temperature [Max]	Voltage	Usage	Cable Type	Features	Jacket Color	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Conductor Insulation	Ratings	Jacket (Insulation) Material	Wire Gauge	Length	Length	Number of Conductors	Conductor Material
Belden Inc. 5100U1 0081000	-20 C	105 ░C	300 V	Security Sound	Multi-Conductor	Rip Cord Water-Blocked	Gray	0.025 in	0.635 mm	Poly-Vinyl Chloride (PVC)	UL Style CL3	Poly-Vinyl Chloride (PVC)	13.5 AWG	1000 ft	304.8 m	2	Copper Tinned

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 0.86

General part information

2 Conductor Multi-Conductor Cable Gray 14 AWG 1000.0' (304.8m)
