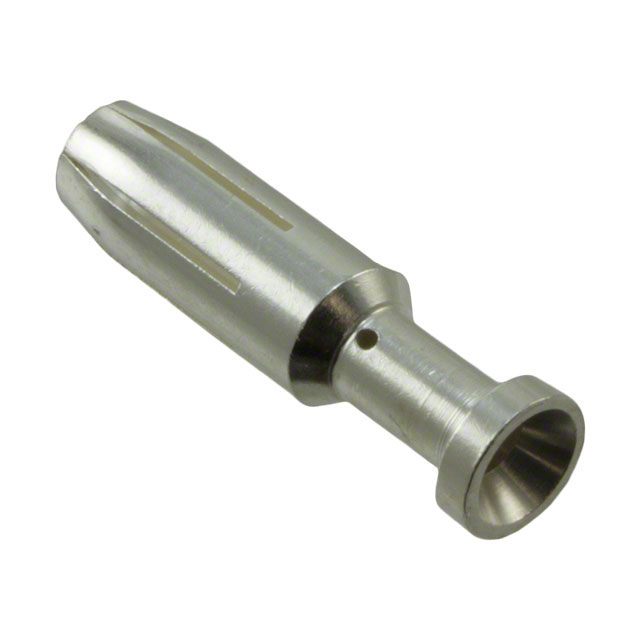

09320006207 - 09320006207

09320006207

Active
HARTING Technology Group

HEAVY DUTY CONNECTOR CONTACT, HAN C SERIES, SOCKET, 12 AWG, CRIMP, 40 A, COPPER ALLOY

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetTechnical Data Sheet EN+1
09320006207 - 09320006207

09320006207

Active
HARTING Technology Group

HEAVY DUTY CONNECTOR CONTACT, HAN C SERIES, SOCKET, 12 AWG, CRIMP, 40 A, COPPER ALLOY

Deep-Dive with AI

DocumentsDatasheetTechnical Data Sheet EN+1

Technical Specifications

Parameters and characteristics for this part

Specification09320006207
Contact FinishSilver
Contact Finish Thickness3 µm
Contact Finish Thickness118.1 µin
Contact TerminationCrimp
Pin or SocketSocket
TypeMachined
Wire Gauge12 AWG

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 4.90
10$ 4.16
25$ 3.90
50$ 3.72
100$ 3.54
250$ 3.32
500$ 3.16
1000$ 3.01
2500$ 2.82
NewarkEach 1$ 5.19
10$ 3.83
25$ 3.74
50$ 3.70
100$ 3.66
250$ 3.41
500$ 3.26

Description

General part information

09320006 Series

The 09320006207 is a Han C Female Crimp Contact, 4mm² wire cross section area, made of copper alloy with silver plated finish.
