HSCF-2A(P)(52)

LTB

Hirose Electric USA, Inc.

CONN HOUSING

Search across all available documentation for this part.

LTB

Hirose Electric USA, Inc.

CONN HOUSING

Technical Specifications

Parameters and characteristics for this part

Specification	HSCF-2A(P)(52)

Color	Blue
Convert From (Adapter End)	SC Receptacle
Convert To (Adapter End)	SC Receptacle
Housing Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Flange, Snap-In
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Simplex/Duplex	Duplex
Type	Coupler

Part	Simplex/Duplex	Color	Type	Operating Temperature [Max]	Operating Temperature [Min]	Housing Material	Ferrule Material	Mounting Type	Convert To (Adapter End)	Features	Convert From (Adapter End)	Material Flammability Rating
Hirose Electric USA, Inc. HSCF-2A-D(P)	Duplex	Blue	Coupler	70 °C	-25 °C	Synthetic Resin	Zirconia	Flange Panel Mount Snap-In	SC Receptacle	Dust Cap	SC Receptacle
Hirose Electric USA, Inc. HSCF-2A(P)(51)	Duplex	Blue	Coupler	70 °C	-25 °C	Synthetic Resin		Flange Panel Mount Snap-In	SC Receptacle	Dust Cap	SC Receptacle	UL94 V-0
Hirose Electric USA, Inc. HSCF-2A(P)(52)	Duplex	Blue	Coupler	70 °C	-25 °C	Polybutylene Terephthalate (PBT)		Flange Panel Mount Snap-In	SC Receptacle		SC Receptacle	UL94 V-0

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	20	$ 7.30

General part information

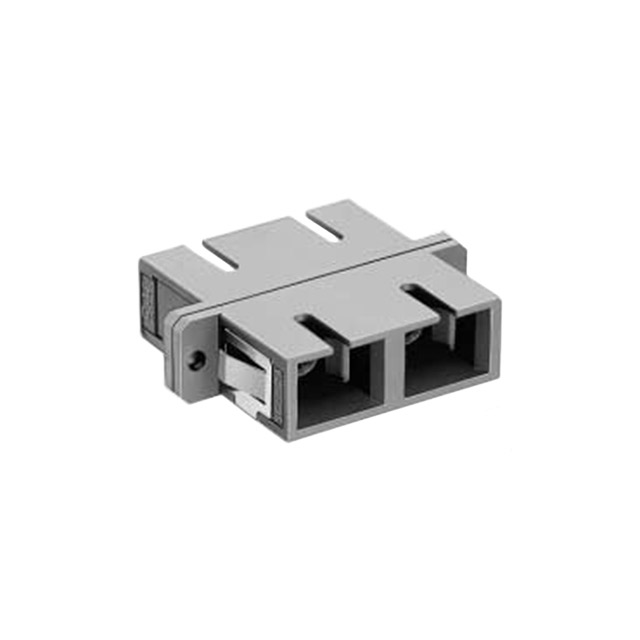

Coupler Fiber Optic Connector SC Receptacle To SC Receptacle Panel Mount, Flange; Snap-In
