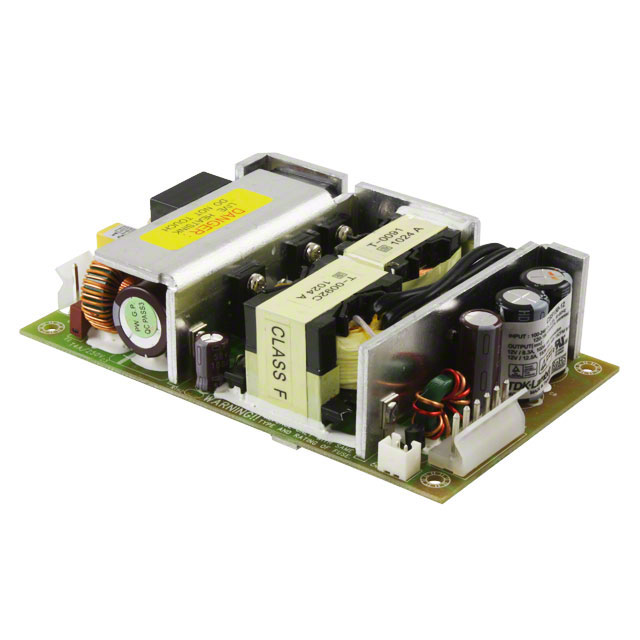

CSS150-15

Active

TDK-LAMBDA

AC/DC OPEN FRAME POWER SUPPLY (PSU), MEDICAL, 1 OUTPUT, 150W, 100 W, 90V AC TO 264V AC

Search across all available documentation for this part.

Active

TDK-LAMBDA

AC/DC OPEN FRAME POWER SUPPLY (PSU), MEDICAL, 1 OUTPUT, 150W, 100 W, 90V AC TO 264V AC

Technical Specifications

Parameters and characteristics for this part

Specification	CSS150-15

Applications	Medical
Approval Agency	CE
Current - Output 1	6.7 A
Efficiency	89 %
Features	DC Input Capable, Remote On/Off, Universal Input
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Power (Watts)	150 W
Power (Watts)	100 W
Size / Dimension [x]	127 mm
Size / Dimension [x]	5 in
Size / Dimension [y]	3 "
Size / Dimension [y]	76.2 mm
Size / Dimension [z]	33 mm
Size / Dimension [z]	1.3 "
Type	Open Frame
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Isolation	4000 V
Voltage - Output 1	15 V

Switching Power Supplies 150W 15V 10A Medical 115-230VAC

Part	Minimum Load Required	Power (Watts)	Power (Watts)	Applications	Number of Outputs	Type	Mounting Type	Voltage - Output 1	Voltage - Input [Min]	Voltage - Input [Max]	Current - Output 1	Approval Agency	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Voltage - Isolation	Features	Operating Temperature [Max]	Operating Temperature [Min]	Efficiency
TDK-LAMBDA CSS150-15		150 W	100 W	Medical	1	Open Frame	Chassis Mount	15 V	90 VAC	264 VAC	6.7 A	CE	3 "	127 mm	76.2 mm	33 mm	5 in	1.3 "	4000 V	DC Input Capable Remote On/Off Universal Input	70 °C	0 °C	89 %

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Switching Power Supplies 150W 15V 10A Medical 115-230VAC
