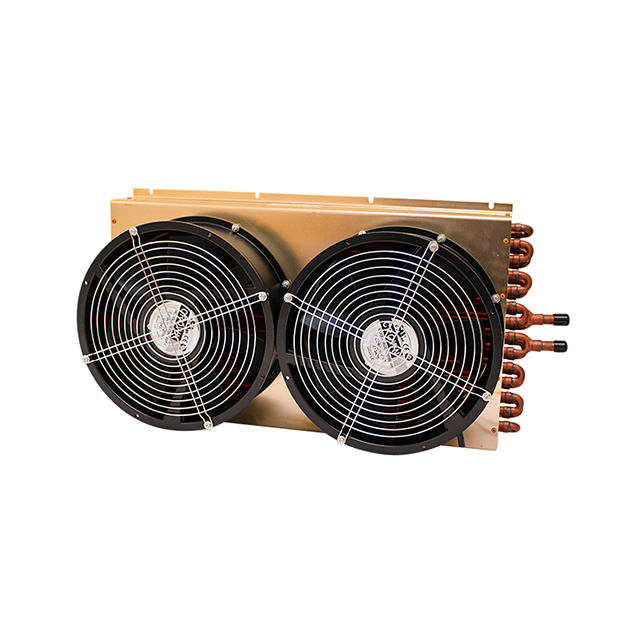

ATS-HE23-C3-R0

Active

Advanced Thermal Solutions Inc.

HEAT EXCHANGERS HEAT EXCHANGER W/2 X 12VDC PWM FAN, TUBE TO FIN, LIQUID-TO-AIR, 444X228X63MM

Search across all available documentation for this part.

Active

Advanced Thermal Solutions Inc.

HEAT EXCHANGERS HEAT EXCHANGER W/2 X 12VDC PWM FAN, TUBE TO FIN, LIQUID-TO-AIR, 444X228X63MM

Technical Specifications

Parameters and characteristics for this part

Heat Exchangers Heat Exchanger w/2 x 48VDC Fan, Tube to Fin, Liquid-to-Air, 444x228x63mm (LxWxH)

Part	Product Type	Dimensions - Overall [x]	Dimensions - Overall [z]	Dimensions - Overall [x]	Dimensions - Overall [z]	Dimensions - Overall [y]	Dimensions - Overall [y]	Voltage	Power - Cooling	Weight	Weight	Attachment Method
Advanced Thermal Solutions Inc. ATS-HE23-C7-R0	Active Heat Exchanger	506.8 mm	2.62 "	19.95 "	66.5 mm	232 mm	9.13 "	48 V	117 W	7.6 kg	16.8 lbs	Bolt On
Advanced Thermal Solutions Inc. ATS-HE23-C3-R0	Active Heat Exchanger	506.8 mm	2.62 "	19.95 "	66.5 mm	232 mm	9.13 "	12 V	117 W	7.6 kg	16.8 lbs	Bolt On

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Heat Exchangers Heat Exchanger w/2 x 48VDC Fan, Tube to Fin, Liquid-to-Air, 444x228x63mm (LxWxH)
