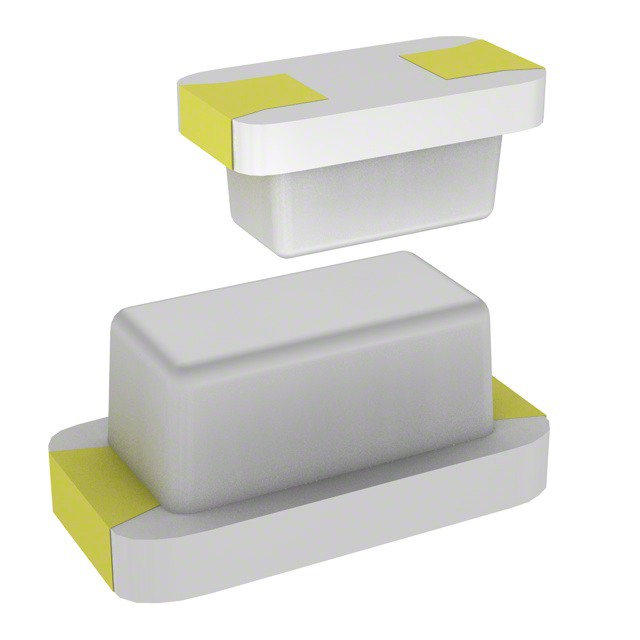

3414.0114.26
ActiveSCHURTER Inc.
FUSE BOARD MNT 750MA 32VDC 0402
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
3414.0114.26
ActiveSCHURTER Inc.
FUSE BOARD MNT 750MA 32VDC 0402
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 3414.0114.26 |
|---|---|
| Breaking Capacity @ Rated Voltage | 35 A |
| Current Rating (Amps) | 750 mA |
| DC Cold Resistance | 0.078 Ohms |
| Fuse Type | Board Mount |
| Melting I²t | 0.009 |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 0402 (1005 Metric) |
| Response Time | Fast Blow |
| Size / Dimension [x] | 1 mm |
| Size / Dimension [x] | 0.04 " |
| Size / Dimension [y] | 0.02 in |
| Size / Dimension [y] | 0.5 mm |
| Size / Dimension [z] | 0.48 mm |
| Size / Dimension [z] | 0.019 " |
| Voltage Rating - DC | 32 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.60 | |
| 50 | $ 0.47 | |||
| 100 | $ 0.35 | |||
| 500 | $ 0.28 | |||
| Digi-Reel® | 1 | $ 0.60 | ||
| 50 | $ 0.47 | |||
| 100 | $ 0.35 | |||
| 500 | $ 0.28 | |||
| Tape & Reel (TR) | 10000 | $ 0.28 | ||
Description
General part information
3414.0114 Series
750 mA AC 32 V DC Fuse Board Mount (Cartridge Style Excluded) Surface Mount 0402 (1005 Metric)
