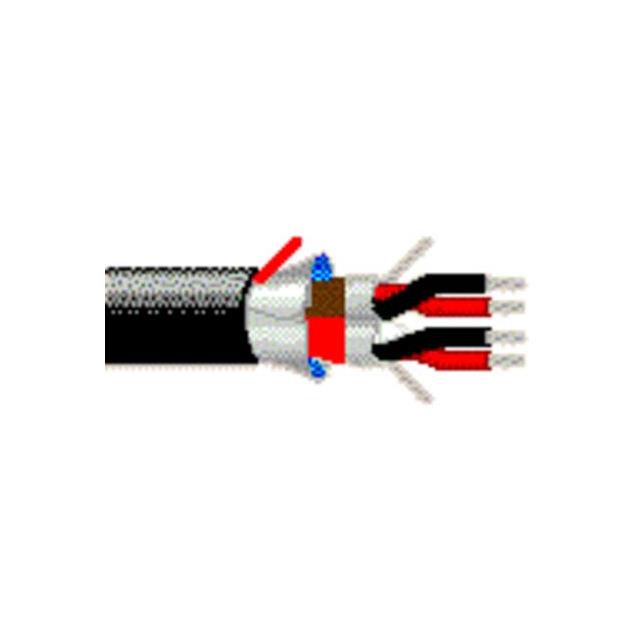

1802F Z4B1000

Active

Belden Inc.

2 #24 PR FHDPE FS PVC FS

Search across all available documentation for this part.

Active

Belden Inc.

2 #24 PR FHDPE FS PVC FS

Technical Specifications

Parameters and characteristics for this part

Specification	1802F Z4B1000

Cable Type	Multi-Pair
Conductor Insulation	Foam Polyethylene (FPE)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	32 AWG
Conductor Strand [custom]	7
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	10.39 mm
Jacket (Insulation) Diameter [diameter]	0.409 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.864 mm
Jacket (Insulation) Thickness	0.034 in
Jacket Color	Violet
Length	1000 ft
Length	304.8 m
Number of Conductors	4
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-30 ░C
Ratings	UL Style CMG
Shield Coverage	100 %
Shield Material	Polyester, Aluminum
Shield Type	Foil
Usage	Audio
Voltage	300 V
Wire Gauge	24 AWG

Part	Ratings	Conductor Insulation	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Features	Conductor Strand [custom]	Conductor Strand [custom]	Shield Coverage	Jacket (Insulation) Material	Jacket Color	Wire Gauge	Voltage	Length	Length	Shield Material	Cable Type	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Shield Type	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Material	Number of Conductors	Usage
Belden Inc. 1802F Z4B1000	UL Style CMG	Foam Polyethylene (FPE)	0.864 mm	0.034 in	Drain Wire	32 AWG	7	100 %	Poly-Vinyl Chloride (PVC)	Violet	24 AWG	300 V	1000 ft	304.8 m	Aluminum Polyester	Multi-Pair	10.39 mm	0.409 in	Foil	-30 ░C	60 °C	Copper Tinned	4	Audio

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 3.90

General part information

4 (2 Pair) Conductor Multi-Pair Cable Violet 24 AWG Foil 1000.0' (304.8m)
