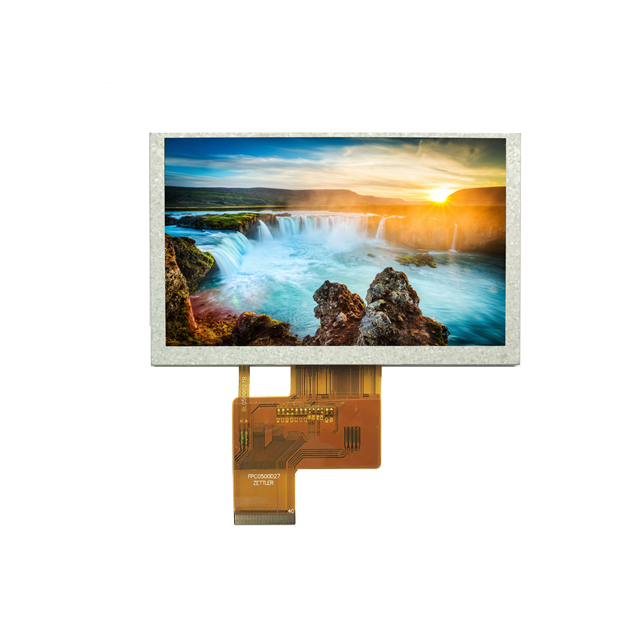

ATM0500D27K

Active

AZ Displays

5.0" IPS LCD 800 X 480

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ATM0500D27K

Active

AZ Displays

5.0" IPS LCD 800 X 480

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ATM0500D27K

Background Color	White
Backlight	LED
Diagonal Screen Size [custom]	127 mm
Diagonal Screen Size [custom]	5 in
Display Mode	Transmissive
Display Type	TFT - Color, IPS (In-Plane Switching)
Dot Pitch [x]	0.05 mm
Dot Pitch [y]	0.14 mm
Dot Pixels [x]	800
Dot Pixels [y]	480
Dot Size [y]	0.05 mm
Dot Size [z]	0.14 mm
Graphics Color	Green, Red, Blue
Interface	Parallel
Interface	24 Bit
Viewing Area [x]	108 mm
Viewing Area [y]	64.8 mm

ATM0500 Series

Part	Diagonal Screen Size [custom]	Diagonal Screen Size [custom]	Dot Pixels [y]	Dot Pixels [x]	Display Mode	Graphics Color	Backlight	Display Type	Touchscreen	Background Color	Interface	Dot Pitch [y]	Dot Pitch [x]	Viewing Area [x]	Viewing Area [y]	Dot Size [x]	Dot Size [y]	Interface	Dot Size [z]
AZ Displays ATM0500H1-CT	127 mm	5 in	480	800	Transmissive	Blue Green Red	LED	TFT - Color IPS (In-Plane Switching)	Capacitive	Black	24-Bit (RGB)	0.14 mm	0.05 mm	108.8 mm	65.6 mm
AZ Displays ATM0500D27B-T	127 mm	5 in	480	800	Transmissive	Blue Green Red	LED	TFT - Color IPS (In-Plane Switching)	Resistive	White	Parallel	0.14 mm	0.05 mm	108 mm	64.8 mm	0.14 mm	0.14 mm	24 Bit
AZ Displays ATM0500D27-CT	127 mm	5 in	480	800	Transmissive	Blue Green Red	LED	TFT - Color IPS (In-Plane Switching)	Capacitive	White	Parallel	0.14 mm	0.05 mm	108 mm	64.8 mm	0.14 mm	0.14 mm	24 Bit
AZ Displays ATM0500H1	127 mm	5 in	480	800	Transmissive	Blue Green Red	LED	TFT - Color IPS (In-Plane Switching)		Black	24-Bit (RGB)	0.14 mm	0.05 mm	110.6 mm	67.4 mm
AZ Displays ATM0500D27K -T	127 mm	5 in	480	800	Transmissive	Blue Green Red	LED	TFT - Color IPS (In-Plane Switching)	Resistive	White	Parallel	0.14 mm	0.05 mm	108 mm	64.8 mm	0.14 mm	0.14 mm	24 Bit
AZ Displays ATM0500D27K-CT	127 mm	5 in	480	800	Transmissive	Blue Green Red	LED	TFT - Color IPS (In-Plane Switching)	Capacitive	White	Parallel	0.14 mm	0.05 mm	108 mm	64.8 mm	0.14 mm	0.14 mm	24 Bit
AZ Displays ATM0500D27K-T	127 mm	5 in	480	800	Transmissive	Blue Green Red	LED	TFT - Color	Resistive		Parallel	0.14 mm	0.05 mm	108 mm	64.8 mm	0.14 mm	0.14 mm	24 Bit
AZ Displays ATM0500M27K	127 mm	5 in	480	800	Transmissive	Blue Green Red	LED	TFT - Color IPS (In-Plane Switching)		Black	MIPI	0.14 mm	0.05 mm	110.6 mm	67.4 mm
AZ Displays ATM0500D27K	127 mm	5 in	480	800	Transmissive	Blue Green Red	LED	TFT - Color IPS (In-Plane Switching)		White	Parallel	0.14 mm	0.05 mm	108 mm	64.8 mm		0.05 mm	24 Bit	0.14 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	500	$ 34.24

Description

General part information

ATM0500 Series

Graphic LCD Display Module Transmissive Red, Green, Blue (RGB) TFT - Color, IPS (In-Plane Switching) Parallel, 24-Bit (RGB) 5" (127.00mm) 800 x 480

Documents

Technical documentation and resources
