AT3006JC

Active

NKK Switches

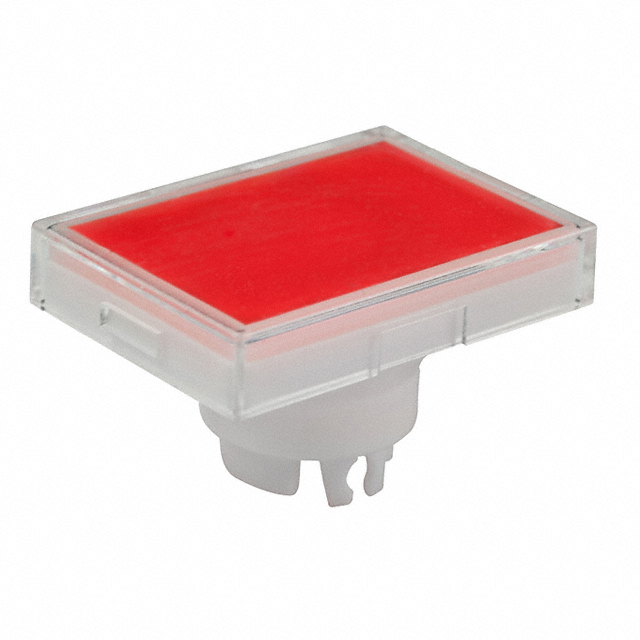

SWITCH CAP, POLYCARBONATE, NKK YB SERIES PUSHBUTTON SWITCHES, TRANSPARENT, RED

Search across all available documentation for this part.

Active

NKK Switches

SWITCH CAP, POLYCARBONATE, NKK YB SERIES PUSHBUTTON SWITCHES, TRANSPARENT, RED

Technical Specifications

Parameters and characteristics for this part

Specification	AT3006JC

Color	Clear, Red
For Use With/Related Products	YB Series
Illumination	Illuminated
Mounting Type	Snap Fit
Shape	Rectangular
Size [x]	21 mm
Size [y]	15 mm
Size [z]	4 mm
Switch Type	Pushbutton

Part	Switch Type	Mounting Type	Size [z]	Size [y]	Size [x]	For Use With/Related Products	Color	Illumination	Shape
NKK Switches AT3006JC	Pushbutton	Snap Fit	4 mm	15 mm	21 mm	YB Series	Clear Red	Illuminated	Rectangular
NKK Switches AT3006JB	Pushbutton	Snap Fit	4 mm	15 mm	21 mm	YB Series	Clear White	Illuminated	Rectangular
NKK Switches AT3006JF	Pushbutton	Snap Fit	4 mm	15 mm	21 mm	YB Series	Clear Green	Illuminated	Rectangular

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Rectangular Pushbutton Switch Cap Clear, Red Snap Fit
