Q-23037000D048i

Active

Amphenol Custom Cable

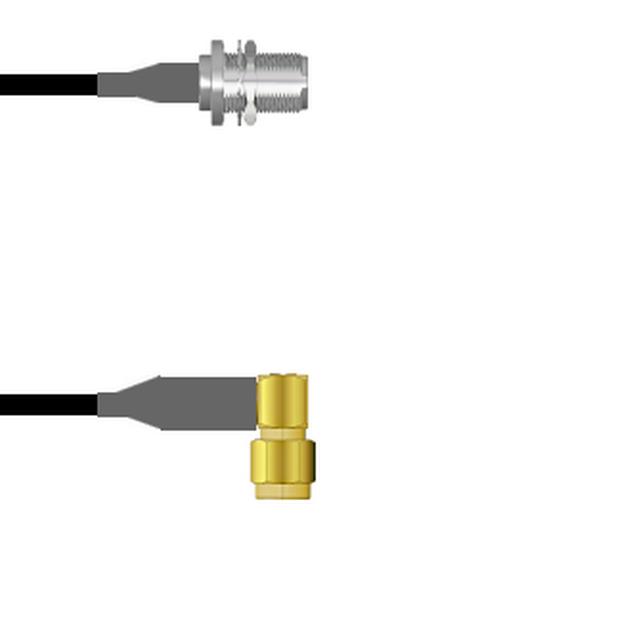

CBL ASSY SMA-NTYPE PLUG-JACK 4'

Deep-Dive with AI

Search across all available documentation for this part.

Q-23037000D048i

Active

Amphenol Custom Cable

CBL ASSY SMA-NTYPE PLUG-JACK 4'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-23037000D048i

1st Connector	SMA Plug, Right Angle
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	N-Type Jack
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Type	LMR 195
Color	Black
Features	Shielded
Frequency - Max [Max]	6000 MHz
Length	1200 mm
Length	4 ft
Length	48 in
Overall Impedance	50 Ohms
Style	SMA to N-Type

Q-230370 Series

Part	2nd Contact Gender	1st Connector Mounting Type	Style	Color	Features	1st Connector	Overall Impedance	2nd Connector Mounting Feature	Frequency - Max [Max]	2nd Connector Mounting Type	1st Contact Gender	Cable Type	2nd Connector	Length	Length	Length	Length [x]	Length [x]
Amphenol Custom Cable Q-23037000D084i	Female	Free Hanging (In-Line)	SMA to N-Type	Black	Shielded	Right Angle SMA Plug	50 Ohms	Bulkhead - Front Side Nut	6000 MHz	Panel Mount	Male	LMR 195	N-Type Jack	84 in	2.1 m	7 ft
Amphenol Custom Cable Q-23037000D001M	Female	Free Hanging (In-Line)	SMA to N-Type	Black	Shielded	Right Angle SMA Plug	50 Ohms	Bulkhead - Front Side Nut	6000 MHz	Panel Mount	Male	LMR 195	N-Type Jack	39.4 in	1 m	3.3 ft
Amphenol Custom Cable Q-23037000D002M	Female	Free Hanging (In-Line)	SMA to N-Type	Black	Shielded	Right Angle SMA Plug	50 Ohms	Bulkhead - Front Side Nut	6000 MHz	Panel Mount	Male	LMR 195	N-Type Jack	78.7 in	2 m	6.6 ft
Amphenol Custom Cable Q-23037000D024i	Female	Free Hanging (In-Line)	SMA to N-Type	Black	Shielded	Right Angle SMA Plug	50 Ohms	Bulkhead - Front Side Nut	6000 MHz	Panel Mount	Male	LMR 195	N-Type Jack	24 "	609.6 mm
Amphenol Custom Cable Q-23037000D060i	Female	Free Hanging (In-Line)	SMA to N-Type	Black	Shielded	Right Angle SMA Plug	50 Ohms	Bulkhead - Front Side Nut	6000 MHz	Panel Mount	Male	LMR 195	N-Type Jack	5 '	1.5 m	5 ft
Amphenol Custom Cable Q-23037000D003M	Female	Free Hanging (In-Line)	SMA to N-Type	Black	Shielded	Right Angle SMA Plug	50 Ohms	Bulkhead - Front Side Nut	6000 MHz	Panel Mount	Male	LMR 195	N-Type Jack	118.1 in	3 m	9.8 '
Amphenol Custom Cable Q-23037000D108i	Female	Free Hanging (In-Line)	SMA to N-Type	Black	Shielded	Right Angle SMA Plug	50 Ohms	Bulkhead - Front Side Nut	6000 MHz	Panel Mount	Male	LMR 195	N-Type Jack	108 in	2.7 m	9 ft
Amphenol Custom Cable Q-23037000D048i	Female	Free Hanging (In-Line)	SMA to N-Type	Black	Shielded	Right Angle SMA Plug	50 Ohms	Bulkhead - Front Side Nut	6000 MHz	Panel Mount	Male	LMR 195	N-Type Jack	48 in	1200 mm	4 ft
Amphenol Custom Cable Q-23037000D018i	Female	Free Hanging (In-Line)	SMA to N-Type	Black	Shielded	Right Angle SMA Plug	50 Ohms	Bulkhead - Front Side Nut	6000 MHz	Panel Mount	Male	LMR 195	N-Type Jack				457.2 mm	457.2 mm
Amphenol Custom Cable Q-23037000D2.5M	Female	Free Hanging (In-Line)	SMA to N-Type	Black	Shielded	Right Angle SMA Plug	50 Ohms	Bulkhead - Front Side Nut	6000 MHz	Panel Mount	Male	LMR 195	N-Type Jack	98.4 in	2.5 m	8.2 '

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 142.20
		25	$ 139.47
		50	$ 136.74
		100	$ 134.02
		250	$ 131.29

Description

General part information

Q-230370 Series

Cable Assembly Coaxial SMA to N-Type LMR 195 48.0" (1.2m) 4.0'

Documents

Technical documentation and resources

No documents available
