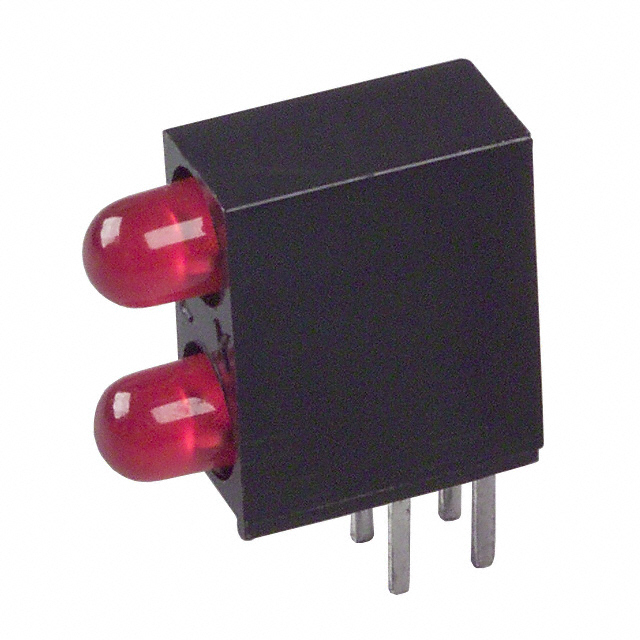

SSF-LXH240IID

Active

Lumex Opto/Components Inc.

LED CBI 2.9MM BI-LVL RED RA

Deep-Dive with AI

Search across all available documentation for this part.

SSF-LXH240IID

Active

Lumex Opto/Components Inc.

LED CBI 2.9MM BI-LVL RED RA

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SSF-LXH240IID

Color	Red
Configuration	2 High
Lens Size [diameter]	2.9 mm
Lens Style	Round with Domed Top
Lens Type	Tinted, Diffused
Millicandela Rating	15 mcd
Mounting Type	Through Hole, Right Angle
Viewing Angle	80 °
Voltage Rating	2 V
Wavelength - Peak	635 nm

SSF-LXH240 Series

Part	Color	Wavelength - Peak [custom]	Voltage Rating	Voltage Rating	Lens Style	Viewing Angle [custom]	Lens Type	Current	Mounting Type	Millicandela Rating	Lens Size	Lens Size	Configuration	Voltage Rating	Wavelength - Peak	Viewing Angle	Lens Size [diameter]
Lumex Opto/Components Inc. SSF-LXH240SUGSID	Green (x 1) Red (x 1)	574 nm 650 nm	1.9 V	2.1 V	Round with Domed Top	40 °	Diffused	10 mA 10 mA	Through Hole Right Angle	180 mcd 1000 mcd	3 mm	T-1	2 High
Lumex Opto/Components Inc. SSF-LXH240GID	Green Red				Round with Domed Top	40 °	Diffused	25 mA 30 mA	Through Hole Right Angle	30 mcd			2 High	2 V 2.2 V	565 nm 627 nm
Lumex Opto/Components Inc. SSF-LXH240GGD	Green (x 2)				Round with Domed Top		Diffused Tinted		Through Hole Right Angle	40 mcd			2 High		565 nm	60 °	2.9 mm
Lumex Opto/Components Inc. SSF-LXH240LIID	Red				Round with Domed Top		Diffused Tinted		Through Hole Right Angle	15 mcd	3 mm	T-1	2 High	2 V	635 nm	80 °
Lumex Opto/Components Inc. SSF-LXH240GYD	Green Yellow				Round with Domed Top		Diffused Tinted		Through Hole Right Angle	15 mcd	3 mm	T-1	2 High	2.1 V	565 nm 585 nm	80 °
Lumex Opto/Components Inc. SSF-LXH240YGD	Green Yellow				Round with Domed Top		Diffused Tinted		Through Hole Right Angle	15 mcd	3 mm	T-1	2 High	2.1 V	565 nm 585 nm	80 °
Lumex Opto/Components Inc. SSF-LXH240IID	Red				Round with Domed Top		Diffused Tinted		Through Hole Right Angle	15 mcd			2 High	2 V	635 nm	80 °	2.9 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.10
		10	$ 0.70
		500	$ 0.47
		1000	$ 0.39
		5000	$ 0.36
		10000	$ 0.35

Description

General part information

SSF-LXH240 Series

LED Circuit Board Indicator LED Circuit Board Indicator 2 High Red (x 2) Diffused, Tinted 2V 20mA Round with Domed Top 2.90mm Dia Through Hole, Right Angle
