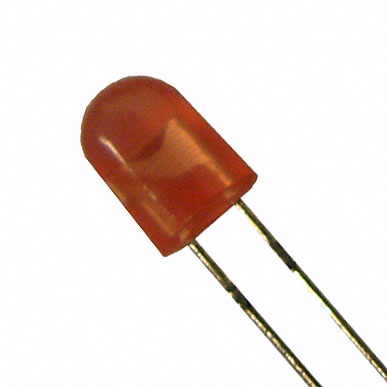

XLM2CRK20DLSDLCR
ActiveSunLED
LED RED DIFFUSED RADIAL LEAD T/H
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
XLM2CRK20DLSDLCR
ActiveSunLED
LED RED DIFFUSED RADIAL LEAD T/H
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | XLM2CRK20DLSDLCR |
|---|---|
| Color | Red |
| Configuration | Standard |
| Current - Test | 20 mA |
| Height (Max) [Max] [z] | 7 mm |
| Lens Color | Red |
| Lens Size [x] | 5.2 mm |
| Lens Size [y] | 3.8 mm |
| Lens Style | Oval with Domed Top |
| Lens Transparency | Diffused |
| Millicandela Rating | 995 mcd |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Supplier Device Package | Radial Lead |
| Viewing Angle | 100 °, 50 ° |
| Voltage - Forward (Vf) (Typ) | 2.2 V |
| Wavelength - Dominant | 625 nm |
| Wavelength - Peak [custom] | 640 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 10000 | $ 0.16 | |
Description
General part information
XLM2CRK20 Series
Red 625nm LED Indication - Discrete 2.2V Radial
