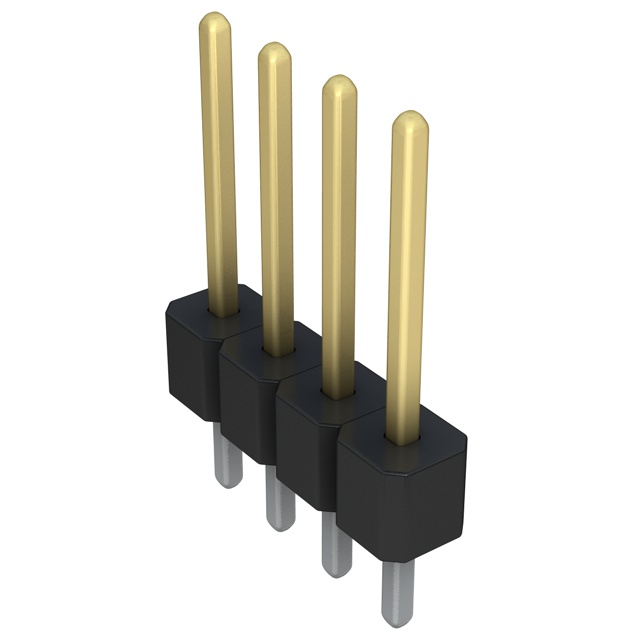

PXC04SFAN

Obsolete

Sullins Connector Solutions

CONN HEADER VERT 4POS 2.54MM

Search across all available documentation for this part.

Obsolete

Sullins Connector Solutions

CONN HEADER VERT 4POS 2.54MM

Technical Specifications

Parameters and characteristics for this part

Specification	PXC04SFAN

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Finish Thickness - Post	2.54 µm
Contact Finish Thickness - Post	100 µin
Contact Length - Mating [x]	0.318 "
Contact Length - Mating [x]	8.08 mm
Contact Length - Post [x]	0.12 in
Contact Length - Post [x]	3.05 mm
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.1 in
Insulation Height	2.54 mm
Insulation Material	Polyester, Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	4
Number of Positions Loaded	All
Number of Rows	1
Overall Contact Length	0.538 "
Overall Contact Length	13.67 mm
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

Part	Pitch - Mating	Pitch - Mating	Contact Material	Material Flammability Rating	Number of Positions	Connector Type	Number of Rows	Number of Positions Loaded	Overall Contact Length	Overall Contact Length	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Current Rating (Amps)	Contact Finish - Post	Contact Length - Mating [x]	Contact Length - Mating [x]	Insulation Height	Insulation Height	Contact Finish - Mating	Contact Type	Contact Length - Post [x]	Contact Length - Post [x]	Shrouding	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Fastening Type	Contact Shape	Insulation Material	Style	Insulation Color	Termination	Mounting Type
Sullins Connector Solutions PXC04SFAN	0.1 in	2.54 mm	Copper Alloy	UL94 V-0	4	Header	1	All	0.538 "	13.67 mm	30 Áin	0.76 Ám	3 A	Tin	0.318 "	8.08 mm	0.1 in	2.54 mm	Gold	Male Pin	0.12 in	3.05 mm	Unshrouded	2.54 µm	100 µin	Push-Pull	Square	Polyester Thermoplastic	Board to Board Cable	Black	Solder	Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Connector Header Through Hole 4 position 0.100" (2.54mm)
