591202B00000G

Active

Boyd Laconia, LLC

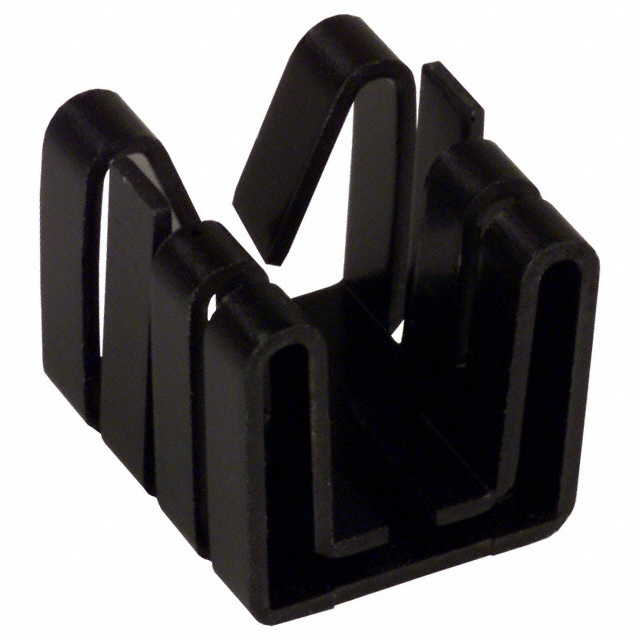

HEATSINK TO-220 VERT/HORZ MOUNT

Search across all available documentation for this part.

Active

Boyd Laconia, LLC

HEATSINK TO-220 VERT/HORZ MOUNT

Technical Specifications

Parameters and characteristics for this part

Specification	591202B00000G

Attachment Method	Clip
Fin Height [z]	12.7 mm
Fin Height [z]	0.5 in
Length	15.24 mm
Length	0.6 in
Material	Aluminum
Material Finish	Black Anodized
Package Cooled	TO-220, TO-262
Power Dissipation @ Temperature Rise	1 W
Shape	Rectangular, Fins
Thermal Resistance @ Forced Air Flow	16 °C/W, 200 LFM
Thermal Resistance @ Natural	26.8 °C/W
Type	Board Level

Part	Fin Height [z]	Fin Height [z]	Length	Length	Attachment Method	Shape	Type	Material	Package Cooled	Thermal Resistance @ Forced Air Flow	Material Finish	Thermal Resistance @ Natural	Power Dissipation @ Temperature Rise
Boyd Laconia, LLC 591202B00000G	12.7 mm	0.5 in	15.24 mm	0.6 in	Clip	Rectangular Fins	Board Level	Aluminum	TO-220 TO-262	16 °C/W 200 LFM	Black Anodized	26.8 °C/W	1 W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Heat Sink TO-220, TO-262 Aluminum 1.0W @ 40°C Board Level
