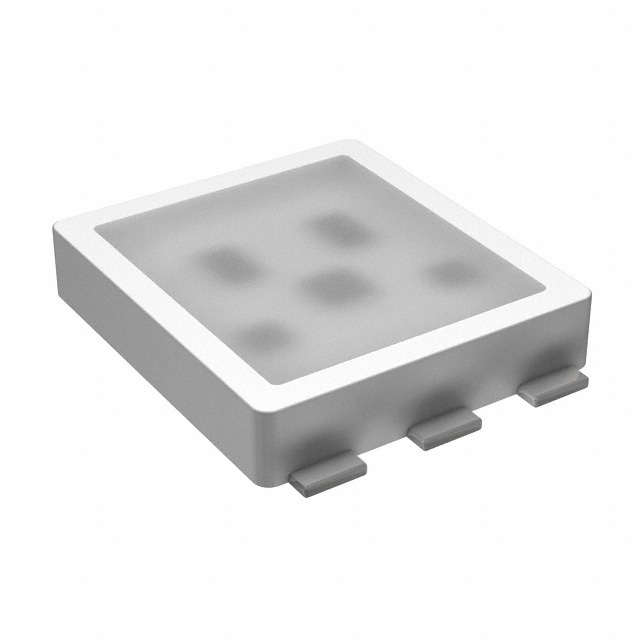

SMLVN6RGB1W1 - 3525 (1411)

SMLVN6RGB1W1

Active
Rohm Semiconductor

LED, RED/GRN/BLU, 700MCD/1.2CD/400MCD ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsSMLVN6RGB1,W,U Series Reliability TestLED Flammability+25
SMLVN6RGB1W1 - 3525 (1411)

SMLVN6RGB1W1

Active
Rohm Semiconductor

LED, RED/GRN/BLU, 700MCD/1.2CD/400MCD ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsSMLVN6RGB1,W,U Series Reliability TestLED Flammability+25

Technical Specifications

Parameters and characteristics for this part

SpecificationSMLVN6RGB1W1
ColorRed, Green, Blue
ConfigurationIndependent
Current - Test [custom]20 mA
Current - Test [custom]20 mA
Current - Test [custom]20 mA
Height (Max) [Max] [z]0.7 mm
Lens ColorWhite
Lens StyleRectangle with Flat Top
Lens TransparencyDiffused
Millicandela Rating [custom]1200 mcd
Millicandela Rating [custom]400 mcd
Millicandela Rating [custom]700 mcd
Mounting TypeSurface Mount
Package / Case6-SMD, Flat Leads
Size / Dimension [x]3.1 mm
Size / Dimension [y]2.8 mm
Supplier Device Package1411
Supplier Device Package3528
Voltage - Forward (Vf) (Typ) [custom]3.3 V
Voltage - Forward (Vf) (Typ) [custom]2.1 V
Voltage - Forward (Vf) (Typ) [custom]3.3 V
Wavelength - Dominant624 nm, 470 nm, 527 nm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyCut Tape (CT) 1$ 1.73
10$ 1.10
100$ 0.78
500$ 0.65
Digi-Reel® 1$ 1.73
10$ 1.10
100$ 0.78
500$ 0.65
Tape & Reel (TR) 1000$ 0.58
2000$ 0.55
5000$ 0.54
10000$ 0.52
NewarkEach (Supplied on Cut Tape) 1$ 1.62
10$ 1.15
25$ 1.06
50$ 0.96
100$ 0.87
250$ 0.81
500$ 0.74

Description

General part information

SMLVN6RGB1U Series

This product is a 6pin type product. SMLVN series is a thin reflector type that allows uniform illumination within the symbol to be illuminated. High brightness and large-area luminescence are possible.
