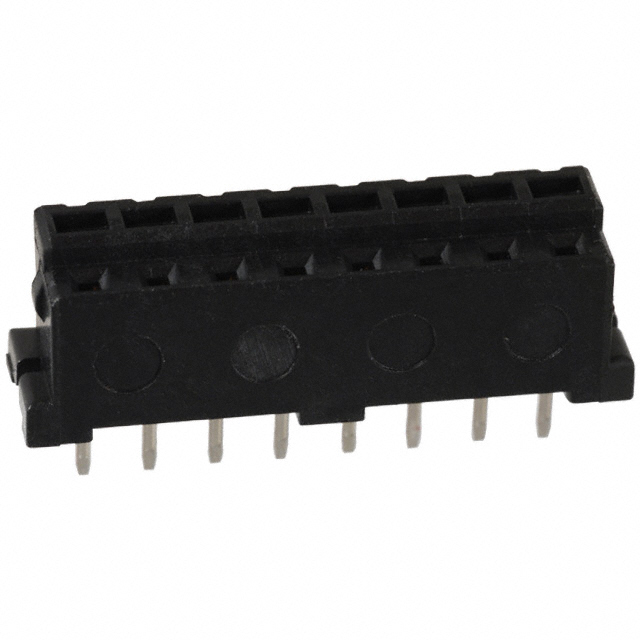

DF3-8S-2DSA(25)

Active

Hirose Electric USA, Inc.

[SIGNALBEE ] 2.0MM PITCH DISCRETE WIRE, BOARD TO BOARD CONNECTORS (UL/CSA CERTIFIED) ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

DF3-8S-2DSA(25)

Active

Hirose Electric USA, Inc.

[SIGNALBEE ] 2.0MM PITCH DISCRETE WIRE, BOARD TO BOARD CONNECTORS (UL/CSA CERTIFIED) ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DF3-8S-2DSA(25)

Connector Type	Receptacle
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	78.7 µin
Contact Finish Thickness - Mating	2 µm
Contact Finish Thickness - Post	2 çm
Contact Finish Thickness - Post	78.7 çin
Contact Length - Post	0.118 in
Contact Length - Post	3 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Current Rating (Amps)	3 A
Fastening Type	Friction Lock
Insulation Color	Black
Insulation Height	5.9 mm
Insulation Height	0.232 in
Insulation Material	Polyamide (PA), Nylon
Mated Stacking Heights [z]	6.6 mm, 7.5 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	8
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	30 VAC

DF3-8 Series

Part	Contact Finish - Mating	Contact Length - Mating [x]	Contact Length - Mating [x]	Contact Length - Post	Contact Length - Post	Contact Shape	Number of Positions Loaded	Contact Type	Connector Type	Pitch - Mating [x]	Pitch - Mating [x]	Overall Contact Length [x]	Overall Contact Length [x]	Current Rating (Amps)	Style	Contact Material	Insulation Color	Material Flammability Rating	Operating Temperature [Max]	Operating Temperature [Min]	Number of Rows	Insulation Material	Termination	Fastening Type	Insulation Height	Insulation Height	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions	Mounting Type	Shrouding	Contact Termination	Note	Pitch [x]	Pitch [x]	Color	Voltage Rating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish - Post	Mated Stacking Heights [z]
Hirose Electric USA, Inc. DF3-8P-2DSA(01)	Gold	0.122 in	3.1 mm	0.114 in	2.9 mm	Square	All	Male Pin	Header	0.079 in	2 mm	0.299 in	7.6 mm	3 A	Board to Board Cable	Brass	Black	UL94 V-0	105 ░C	-55 °C	1	Nylon Polyamide (PA)	Press-Fit Solder	Push-Pull	0.197 in	5 mm	0.203 Ám	8 Áin	8	Through Hole	Shrouded - 4 Wall
Hirose Electric USA, Inc. DF3-8EP-2C								Male Pin	Plug										105 ░C	-55 °C	1	Nylon Polyamide (PA)							8	Free Hanging (In-Line)		Crimp	Contacts Not Included	0.079 in	2 mm	Black
Hirose Electric USA, Inc. DF3-8P-2DS(01)	Gold	0.122 in	3.1 mm	0.114 in	2.9 mm	Square	All	Male Pin	Header	0.079 in	2 mm			3 A	Board to Board Cable	Brass	Black	UL94 V-0	105 ░C	-55 °C	1	Nylon Polyamide (PA)	Press-Fit Solder	Push-Pull	0.197 in	5 mm	0.203 Ám	8 Áin	8	Through Hole Right Angle	Shrouded - 4 Wall
Hirose Electric USA, Inc. DF3-8S-2DSA(25)				0.118 in	3 mm	Square	All	Female Socket	Receptacle	0.079 in	2 mm			3 A	Board to Board Cable	Phosphor Bronze	Black	UL94 V-0	85 °C	-30 ░C	1	Nylon Polyamide (PA)	Solder	Friction Lock	0.232 in	5.9 mm	2 µm	78.7 µin	8	Through Hole							30 VAC	2 çm	78.7 çin	Tin	6.6 mm 7.5 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	27	$ 1.04
Newark	Each	1	$ 1.00
		2511	$ 0.88

Description

General part information

DF3-8 Series

8 Position Receptacle Connector 0.079" (2.00mm) Through Hole Tin
