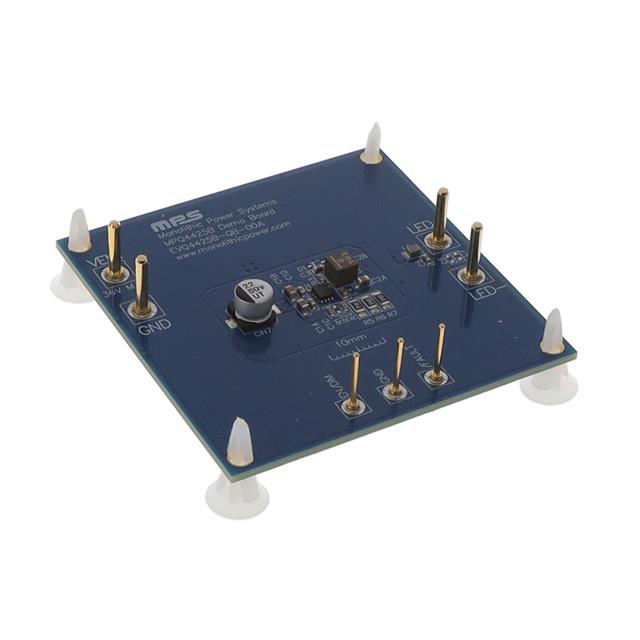

EVQ4425B-QB-00A

Active

MONOLITHIC POWER SYSTEMS (MPS)

EVAL BOARD FOR MPQ4425B

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EVQ4425B-QB-00A

Active

MONOLITHIC POWER SYSTEMS (MPS)

EVAL BOARD FOR MPQ4425B

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EVQ4425B-QB-00A

Current - Output / Channel	1.5 A
Features	Dimmable
Outputs and Type	1 Non-Isolated Output
Supplied Contents	Board(s)
Utilized IC / Part	MPQ4425B
Voltage - Input [Max]	36 V
Voltage - Input [Min]	4 V

MPQ4425 Series

Part	Mounting Type	Current - Output / Channel	Topology	Grade	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Supply (Min) [Min]	Supplier Device Package	Type	Qualification	Number of Outputs	Voltage - Output [Max]	Voltage - Output [Min]	Package / Case	Voltage - Supply (Max) [Max]	Dimming	Frequency	Utilized IC / Part	Outputs and Type	Features	Supplied Contents	Voltage - Input [Min]	Voltage - Input [Max]	Applications
MONOLITHIC POWER SYSTEMS (MPS) MPQ4425BGQBE-AEC1-Z	Surface Mount Wettable Flank	1.5 A	Step-Down (Buck)	Automotive	-40 °C	125 ¯C	4 V	13-QFN (2.5x3)	DC DC Regulator	AEC-Q100	1	36 V	0.2 V	13-PowerVQFN	36 V	PWM	400 kHz
MONOLITHIC POWER SYSTEMS (MPS) EVQ4425B-J-00A		1.5 A																MPQ4425B-AEC1	1 Non-Isolated Output	Dimmable	Board(s)	4 V	36 V
MONOLITHIC POWER SYSTEMS (MPS) MPQ4425MGQB-P	Surface Mount	1.5 A	Step-Down (Buck)	Automotive	-40 °C	125 ¯C	4 V	13-QFN (2.5x3)	DC DC Regulator	AEC-Q100	1			13-PowerVQFN	36 V	PWM	2.2 MHz							Lighting
MONOLITHIC POWER SYSTEMS (MPS) MPQ4425BGQBE-AEC1-P	Surface Mount Wettable Flank	1.5 A	Step-Down (Buck)	Automotive	-40 °C	125 ¯C	4 V	13-QFN (2.5x3)	DC DC Regulator	AEC-Q100	1	36 V	0.2 V	13-PowerVQFN	36 V	PWM	400 kHz
MONOLITHIC POWER SYSTEMS (MPS) MPQ4425BGQB-AEC1-Z	Surface Mount	1.5 A	Step-Down (Buck)	Automotive	-40 °C	125 ¯C	4 V	13-QFN (2.5x3)	DC DC Regulator	AEC-Q100	1	36 V	0.2 V	13-PowerVQFN	36 V	PWM	400 kHz
MONOLITHIC POWER SYSTEMS (MPS) EVQ4425B-QB-00A		1.5 A																MPQ4425B	1 Non-Isolated Output	Dimmable	Board(s)	4 V	36 V
MONOLITHIC POWER SYSTEMS (MPS) MPQ4425MGQBE-AEC1-Z	Surface Mount Wettable Flank	1.5 A	Step-Down (Buck)	Automotive	-40 °C	125 ¯C	4 V	13-QFN (2.5x3)	DC DC Regulator	AEC-Q100	1			13-PowerVQFN	36 V	PWM	2.2 MHz							Lighting

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 50.00

Description

General part information

MPQ4425 Series

MPQ4425B - 1 Non-Isolated Output Dimmable LED Driver Evaluation Board

Documents

Technical documentation and resources
