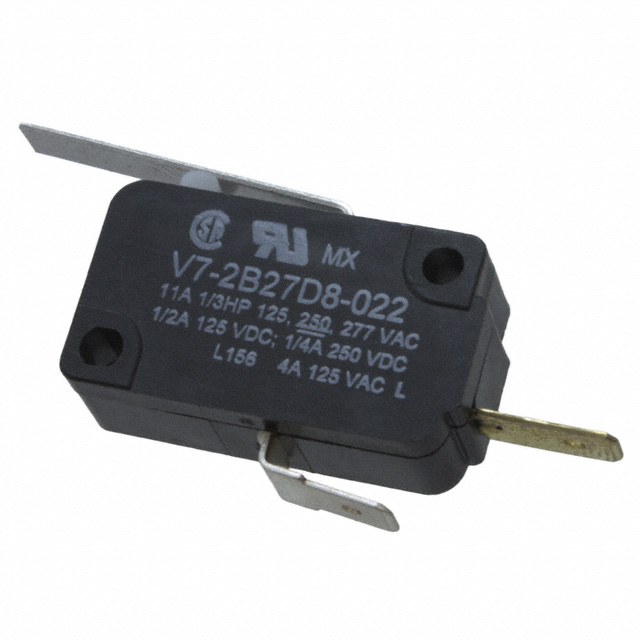

V7-2B27D8-022

Active

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACT SPST-NO 11A 125V

Search across all available documentation for this part.

Active

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACT SPST-NO 11A 125V

Technical Specifications

Parameters and characteristics for this part

Part	Overtravel	Overtravel	Voltage Rating - AC	Current Rating (Amps)	Termination Style	Actuator Type	Pretravel	Pretravel	Differential Travel	Differential Travel	Voltage Rating - DC	Switch Function	Mounting Type	Operating Position	Operating Position	Mechanical Life	Operating Force	Circuit	Operating Temperature [Max]	Operating Temperature [Min]	Electrical Life	Overtravel	Release Force
Honeywell Sensing and Productivity Solutions V7-2B28D8	1.27 mm	0.05 in	125 V	11 A 500 mA	Quick Connect - 0.187" (4.7mm)	Round (Pin Plunger)	0.047 in	1.2 mm	0.25 mm	0.01 in	125 VDC	Off-Mom	Chassis Mount	0.579 in	14.7 mm	10000000 Cycles	75 gf	SPST-NO	85 °C	-40 °C
Honeywell Sensing and Productivity Solutions V7-2B27E9-000-4	1.27 mm	0.05 in	125 V	11 A 500 mA	Quick Connect - 0.250" (6.3mm)	Round (Pin Plunger)	0.047 in	1.2 mm	0.25 mm	0.01 in	125 VDC	Off-Mom	Chassis Mount	0.579 in	14.7 mm	10000000 Cycles	75 gf	SPST-NO	85 °C	-40 °C
Honeywell Sensing and Productivity Solutions V7-2B27D8-022	0.068 "		125 V	11 A 500 mA	Quick Connect - 0.187" (4.7mm)	Lever Straight	0.12 in	3 mm	0.76 mm	0.03 in	125 VDC	Off-Mom	Chassis Mount	0.6 in	15.2 mm	10000000 Cycles	41 gf	SPST-NO	85 °C	-40 °C	100000 Cycles	1.73 mm	3 gf

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	200	$ 3.06

General part information

Switch SPST-NO Chassis Mount
