CL1R3100

Active

Souriau-Sunbank by Eaton

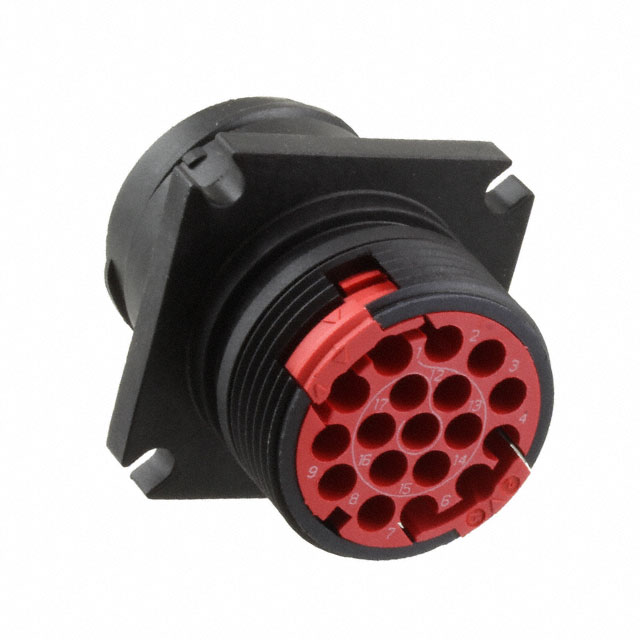

CONN RCPT HSG FMALE 18POS PNL MT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CL1R3100

Active

Souriau-Sunbank by Eaton

CONN RCPT HSG FMALE 18POS PNL MT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CL1R3100

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	16
Contact Type	Crimp and Solder Cup
Fastening Type	Twist Latch
Housing Color	Black
Ingress Protection	IP40
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Note	Contacts Not Included
Number of Positions	18
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Shell Material	Thermoplastic, Halogen Free
Shell Size - Insert	3-1
Shielding	Unshielded
Type	For Female Sockets

CL1R Series

Part	Shell Material	Contact Size	Ingress Protection	Fastening Type	Shielding	Type	Contact Shape	Housing Color	Connector Type	Mounting Feature	Orientation	Insert Material	Contact Type	Material Flammability Rating	Number of Positions	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Note	Shell Size - Insert
Souriau-Sunbank by Eaton CL1R4201	Thermoplastic Halogen Free	16	IP67 - Dust Tight Waterproof	Twist Latch	Unshielded	For Female Sockets	Circular	Black	Receptacle Housing	Flange	Keyed	Thermoplastic	Crimp and Solder Cup	UL94 V-0	40	2	4	125 °C	-40 °C	Contacts Not Included
Souriau-Sunbank by Eaton CL1R2101	Thermoplastic Halogen Free	16	IP67 - Dust Tight Waterproof	Twist Latch	Unshielded	For Female Sockets	Circular	Black	Receptacle Housing	Flange	Keyed	Thermoplastic	Crimp and Solder Cup	UL94 V-0	9			125 °C	-40 °C	Contacts Not Included
Souriau-Sunbank by Eaton CL1R2100	Thermoplastic Halogen Free	16	IP40	Twist Latch	Unshielded	For Female Sockets	Circular	Black	Receptacle Housing	Flange	Keyed	Thermoplastic	Crimp and Solder Cup	UL94 V-0	9			125 °C	-40 °C	Contacts Not Included
Souriau-Sunbank by Eaton CL1R3101	Thermoplastic Halogen Free	16	IP67 - Dust Tight Waterproof	Twist Latch	Unshielded	For Female Sockets	Circular	Black	Receptacle Housing	Flange	Keyed	Thermoplastic	Crimp and Solder Cup	UL94 V-0	18			125 °C	-40 °C	Contacts Not Included	3-1
Souriau-Sunbank by Eaton CL1R1101	Thermoplastic Halogen Free	16	IP67 - Dust Tight Waterproof	Twist Latch	Unshielded	For Female Sockets	Circular	Black	Receptacle Housing	Flange	Keyed	Thermoplastic	Crimp and Solder Cup	UL94 V-0	4			125 °C	-40 °C	Contacts Not Included	1-1
Souriau-Sunbank by Eaton CL1R3102	Thermoplastic Halogen Free	16	IP68 - Dust Tight Waterproof	Twist Latch	Unshielded	For Female Sockets	Circular	Black	Receptacle Housing	Flange	Keyed	Thermoplastic	Crimp and Solder Cup	UL94 V-0	18			125 °C	-40 °C	Contacts Not Included	3-1
Souriau-Sunbank by Eaton CL1R3100	Thermoplastic Halogen Free	16	IP40	Twist Latch	Unshielded	For Female Sockets	Circular	Black	Receptacle Housing	Flange	Keyed	Thermoplastic	Crimp and Solder Cup	UL94 V-0	18			125 °C	-40 °C	Contacts Not Included	3-1
Souriau-Sunbank by Eaton CL1R4202	Thermoplastic Halogen Free	16	IP68 - Dust Tight Waterproof	Twist Latch	Unshielded	For Female Sockets	Circular	Black	Receptacle Housing	Flange	Keyed	Thermoplastic	Crimp and Solder Cup	UL94 V-0	40	2	4	125 °C	-40 °C	Contacts Not Included
Souriau-Sunbank by Eaton CL1R4200	Thermoplastic Halogen Free	16	IP40	Twist Latch	Unshielded	For Female Sockets	Circular	Black	Receptacle Housing	Flange	Keyed	Thermoplastic	Crimp and Solder Cup	UL94 V-0	40	2	4	125 °C	-40 °C	Contacts Not Included
Souriau-Sunbank by Eaton CL1R2102	Thermoplastic Halogen Free	16	IP68 - Dust Tight Waterproof	Twist Latch	Unshielded	For Female Sockets	Circular	Black	Receptacle Housing	Flange	Keyed	Thermoplastic	Crimp and Solder Cup	UL94 V-0	9			125 °C	-40 °C	Contacts Not Included

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 11.99
		10	$ 9.22
		25	$ 8.34
		50	$ 8.11

Description

General part information

CL1R Series

18 Position Circular Connector Receptacle Housing Panel Mount
