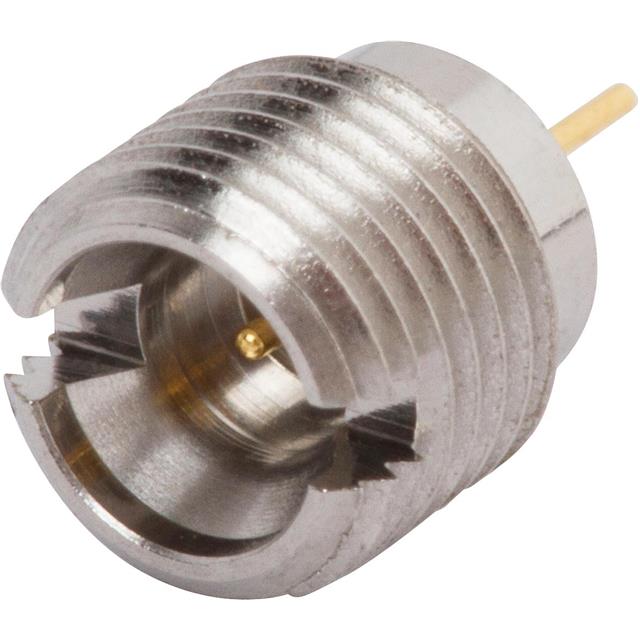

SF1279-6001

Active

Amphenol SV Microwave

CONN SMP PLUG STR 50OHM SOLDER

Search across all available documentation for this part.

Active

Amphenol SV Microwave

CONN SMP PLUG STR 50OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	SF1279-6001

Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Features	Extended Insulation, Full Detent
Frequency - Max [Max]	40 GHz
Housing Color	Silver
Impedance	50 Ohms
Mounting Type	Panel Mount, Threaded
Number of Ports	1
Shield Termination	Solder

Part	Contact Termination	Connector Type	Features	Frequency - Max [Max]	Dielectric Material	Impedance	Body Material	Center Contact Plating	Fastening Type	Number of Ports	Center Contact Material	Shield Termination	Housing Color	Mounting Type
Amphenol SV Microwave SF1279-6001	Solder	Male Pin Plug	Extended Insulation Full Detent	40 GHz	Polytetrafluoroethylene (PTFE)	50 Ohms	Stainless Steel	Gold	Snap-On	1	Beryllium Copper	Solder	Silver	Panel Mount Threaded

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	100	$ 25.19

General part information

SMP Connector Plug, Male Pin 50 Ohms Panel Mount, Threaded Solder
