ASP-3.5-S3-24.2
ActiveAdam Tech
3.5MM AUDIO PLUG
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ASP-3.5-S3-24.2 |
|---|---|
| Connector Type | Phone Plug |
| Contact Material | Copper |
| Contact Material - Plating [custom] | Nickel |
| Current Rating (Amps) | 500 A |
| Gender | Male |
| Industry Recognized Mating Diameter | 0.141 " |
| Industry Recognized Mating Diameter | 0.125 " |
| Industry Recognized Mating Diameter | 3.5 mm |
| Insulation Color | Black |
| Internal Switch(s) | False |
| Mating Length/Depth | 0.551 in |
| Mating Length/Depth | 14 mm |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -25 °C |
| Shielding | Unshielded |
| Signal Lines | Stereo |
| Termination | Solder |
| Voltage - Rated | 30 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 0.74 | |
| 10 | $ 0.57 | |||
| 25 | $ 0.51 | |||
| 50 | $ 0.47 | |||
| 100 | $ 0.44 | |||
| 250 | $ 0.39 | |||
| 500 | $ 0.36 | |||
| 1000 | $ 0.36 | |||
Description
General part information
ASP-3.5-S Series

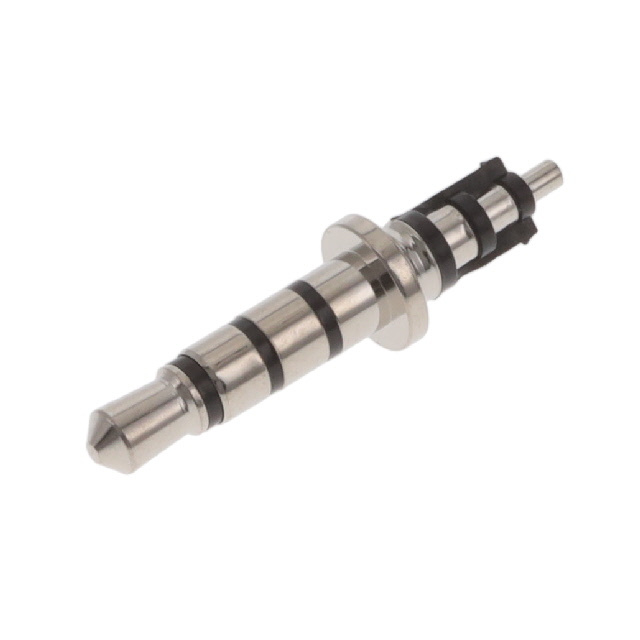

3.50mm (0.141", 1/8", Mini Plug) - Headphone Phone Plug Stereo (4 Conductor, TRRS) Connector Solder
