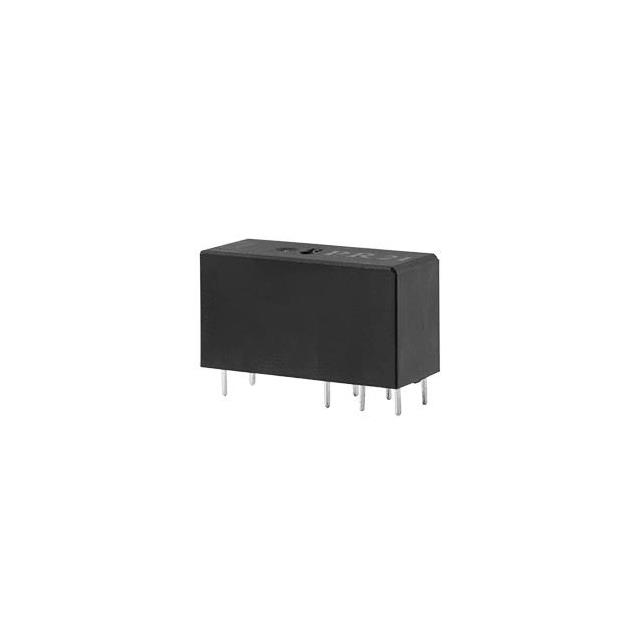

PR21-24V-400-2A
ActiveCUI Devices
POWER RELAY 24VDC 8A DPST-NO(29MM 12.6MM 15.8MM) THT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PR21-24V-400-2A
ActiveCUI Devices
POWER RELAY 24VDC 8A DPST-NO(29MM 12.6MM 15.8MM) THT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PR21-24V-400-2A |
|---|---|
| Coil Current | 16.7 mA |
| Coil Resistance | 1440 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 24 VDC |
| Contact Form | DPST-NO (2 Form A) |
| Contact Material | Silver Alloy |
| Contact Rating (Current) | 8 A |
| Load - Max Switching | 960 W, 3520 VA |
| Mounting Type | Through Hole |
| Must Operate Voltage | 16.8 VDC |
| Must Release Voltage | 2.4 VDC |
| Operate Time | 10 ms |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Relay Type | General Purpose |
| Release Time | 5 ms |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 2.47 | |
| 10 | $ 2.32 | |||
| 25 | $ 2.06 | |||
| 50 | $ 1.96 | |||
| 100 | $ 1.85 | |||
| 250 | $ 1.65 | |||
| 500 | $ 1.55 | |||
| 1000 | $ 1.44 | |||
| 5000 | $ 1.39 | |||
Description
General part information
PR21-24V Series
General Purpose Relay DPST-NO (2 Form A) 24VDC Coil Through Hole
