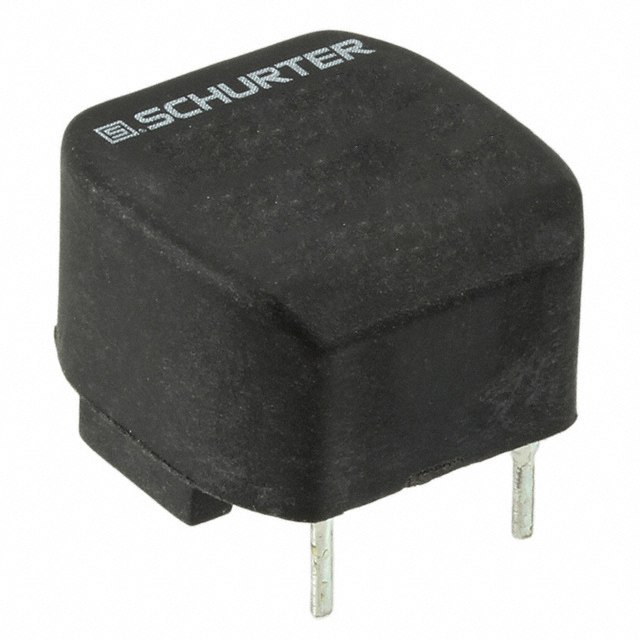

DFKF-18-0005

Active

SCHURTER Inc.

CMC 2A 2LN TH

Search across all available documentation for this part.

Active

SCHURTER Inc.

CMC 2A 2LN TH

Technical Specifications

Parameters and characteristics for this part

Specification	DFKF-18-0005

Current Rating (Max) [Max]	2 A
DC Resistance (DCR) (Max) [Max]	60 mOhm
Mounting Type	Through Hole
Number of Lines	2
Operating Temperature [custom]	100 °C, -25 °C
Package / Case	Radial - 4 Leads
Size / Dimension [x]	18.2 mm
Size / Dimension [x]	0.717 in
Size / Dimension [y]	17.8 mm
Size / Dimension [y]	0.701 in
Voltage Rating - AC	440 V

Part	Operating Temperature [custom]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Current Rating (Max) [Max]	Voltage Rating - AC	Package / Case	DC Resistance (DCR) (Max) [Max]	Number of Lines	Mounting Type	DC Resistance (DCR) (Max)
SCHURTER Inc. DFKF-18-0003	-25 °C 100 °C	17.8 mm	18.2 mm	0.717 in	0.701 in	1.2 A	440 V	Radial - 4 Leads	200 mOhm	2	Through Hole
SCHURTER Inc. DFKF-28-0005	-25 °C 100 °C	27.4 mm	28.3 mm	1.114 in	1.079 "	4 A	440 V	Radial - 4 Leads	28 mOhm	2	Through Hole
SCHURTER Inc. DFKF-28-0002	-25 °C 100 °C	27.4 mm	28.3 mm	1.114 in	1.079 "	1 A	440 V	Radial - 4 Leads		2	Through Hole	360 mOhm
SCHURTER Inc. DFKF-18-0006	-25 °C 100 °C	17.8 mm	18.2 mm	0.717 in	0.701 in	4 A	440 V	Radial - 4 Leads	16 mOhm	2	Through Hole
SCHURTER Inc. DFKF-18-0005	-25 °C 100 °C	17.8 mm	18.2 mm	0.717 in	0.701 in	2 A	440 V	Radial - 4 Leads	60 mOhm	2	Through Hole
SCHURTER Inc. DFKF-28-0006	-25 °C 100 °C	27.4 mm	28.3 mm	1.114 in	1.079 "	6.3 A	440 V	Radial - 4 Leads		2	Through Hole	13 mOhm
SCHURTER Inc. DFKF-28-0001	-25 °C 100 °C	27.4 mm	28.3 mm	1.114 in	1.079 "	600 mA	440 V	Radial - 4 Leads	1 Ohm	2	Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Line Common Mode Choke Through Hole 2A DCR 60mOhm
