09300162297

Active

HARTING Technology Group

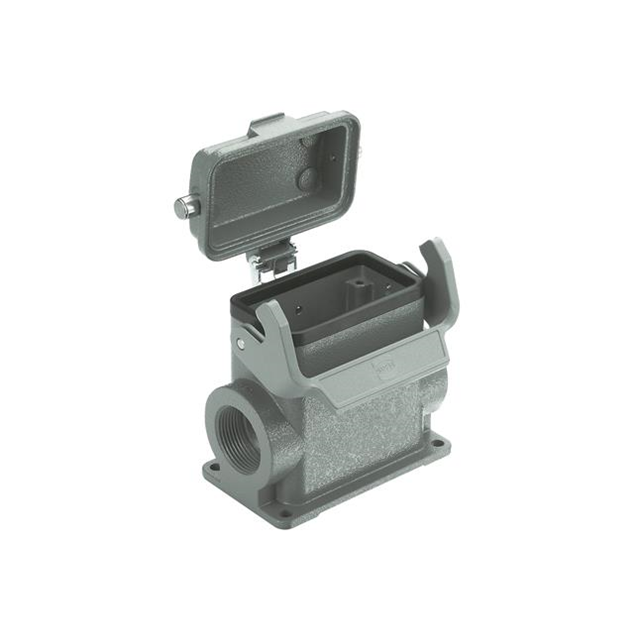

HEAVY DUTY CONNECTOR, PG21, BASE, PANEL MOUNT, ALUMINUM BODY, 1 LEVER, 16B

Search across all available documentation for this part.

Active

HARTING Technology Group

HEAVY DUTY CONNECTOR, PG21, BASE, PANEL MOUNT, ALUMINUM BODY, 1 LEVER, 16B

Technical Specifications

Parameters and characteristics for this part

Specification	09300162297

Connector Type	Base - Box Mount
Housing Color	Gray
Housing Finish	Powder Coated
Housing Material	Die Cast, Aluminum
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (1) on Base Bottom
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	16 B
Size / Dimension [x]	117 mm
Size / Dimension [x]	4.606 "
Size / Dimension [y]	2.244 "
Size / Dimension [y]	57 mm
Size / Dimension [z]	3.189 "
Size / Dimension [z]	81 mm
Style	Side Entry
Thread Size	PG21

Part	Ingress Protection	Housing Finish	Housing Material	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Size	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Style	Thread Size	Housing Color	Lock Location
HARTING Technology Group 09300162298	IP65 - Dust Tight Water Resistant	Powder Coated	Aluminum Die Cast	Base - Box Mount	125 °C	-40 °C	16 B	3.189 "	2.244 "	117 mm	81 mm	4.606 "	57 mm	Side Entry	PG29	Gray	Locking Clip (1) on Base Bottom
HARTING Technology Group 09300162297	IP65 - Dust Tight Water Resistant	Powder Coated	Aluminum Die Cast	Base - Box Mount	125 °C	-40 °C	16 B	3.189 "	2.244 "	117 mm	81 mm	4.606 "	57 mm	Side Entry	PG21	Gray	Locking Clip (1) on Base Bottom

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Base - Box Mount Connector Side Entry PG21 16B IP65 - Dust Tight, Water Resistant
