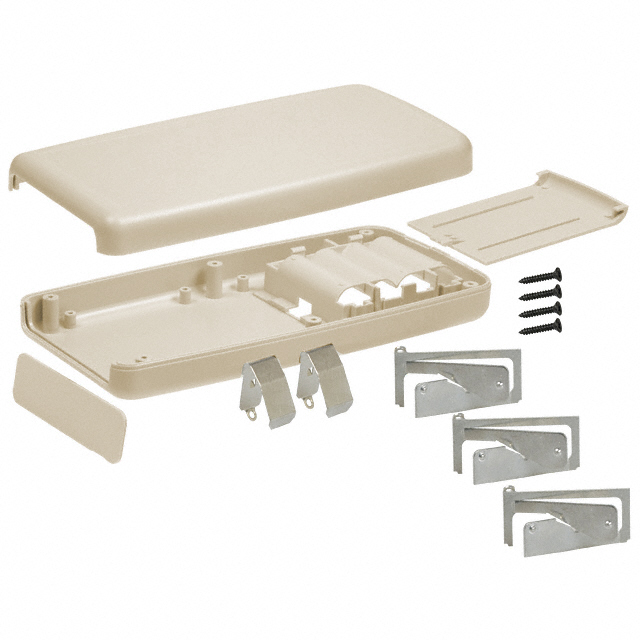

H754AA,AL

Active

Serpac

BOX ABS ALMOND 7.2"L X 3.65"W

Search across all available documentation for this part.

Active

Serpac

BOX ABS ALMOND 7.2"L X 3.65"W

Technical Specifications

Parameters and characteristics for this part

Specification	H754AA,AL

Area (L x W) [custom]	170 cm²
Area (L x W) [custom]	26.3 in²
Color	Almond
Container Type	Box
Features	PCB Supports, AA, Battery Compartment
Height [diameter]	1.26 in
Height [diameter]	32 mm
Material	Plastic, ABS
Material Flammability Rating	UL94 HB
Ratings	IP40
Size / Dimension [x]	7.2 in
Size / Dimension [x]	182.88 mm
Size / Dimension [y]	92.71 mm
Size / Dimension [y]	3.65 in
Thickness	2.03 mm
Thickness	0.08 "
Weight	102.97 g
Weight	0.227 lb

Part	Container Type	Weight	Weight	Height [diameter]	Height [diameter]	Area (L x W) [custom]	Area (L x W) [custom]	Color	Material Flammability Rating	Ratings	Material	Features	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Thickness	Thickness
Serpac H754AA,BK	Box	102.97 g	0.227 lb	1.26 in	32 mm	170 cm²	26.3 in²	Black	UL94 HB	IP40	Plastic ABS	AA Battery Compartment PCB Supports	7.2 in	92.71 mm	3.65 in	182.88 mm	2.03 mm	0.08 "
Serpac H754AA,PC,BK	Box	102.97 g	0.227 lb	1.26 in	32 mm	170 cm²	26.3 in²	Black	UL94 HB	IP40	Plastic ABS	AA Battery Compartment PCB Supports Pocket Clip	7.2 in	92.71 mm	3.65 in	182.88 mm	2.03 mm	0.08 "
Serpac H754AA,GY	Box	102.97 g	0.227 lb	1.26 in	32 mm	170 cm²	26.3 in²	Gray	UL94 HB	IP40	Plastic ABS	AA Battery Compartment PCB Supports	7.2 in	92.71 mm	3.65 in	182.88 mm	2.03 mm	0.08 "
Serpac H754AA,AL	Box	102.97 g	0.227 lb	1.26 in	32 mm	170 cm²	26.3 in²	Almond	UL94 HB	IP40	Plastic ABS	AA Battery Compartment PCB Supports	7.2 in	92.71 mm	3.65 in	182.88 mm	2.03 mm	0.08 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 10.02

General part information

Box Plastic, ABS Almond Hand Held, Split Sides and End Panel(s) 7.200" L x 3.650" W (182.88mm x 92.71mm) X 1.260" (32.00mm)

Technical documentation and resources

No documents available
