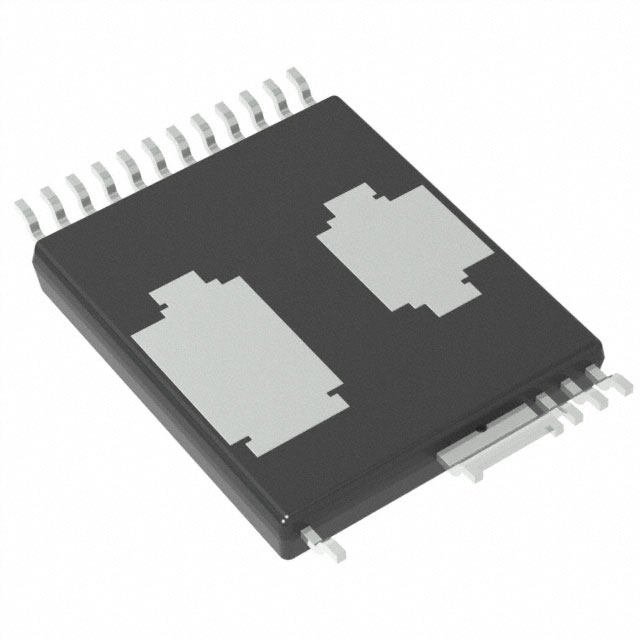

BRD1265C-TL

Active

Power Integrations

IC HALF BRIDGE DRV 5.5A INSOP24C

Search across all available documentation for this part.

Active

Power Integrations

IC HALF BRIDGE DRV 5.5A INSOP24C

Technical Specifications

Parameters and characteristics for this part

Specification	BRD1265C-TL

Applications	DC Motors, General Purpose
Current - Output / Channel	5.5 A
Fault Protection	Over Temperature, Current Limiting, Over Voltage
Features	Bootstrap Circuit
Interface	Logic, Analog, PWM
Load Type	Capacitive and Resistive
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-40 °C
Package / Case	17 Leads
Package / Case	24-PowerSMD Module
Package / Case [x]	0.425 in
Package / Case [x]	10.8 mm
Rds On (Typ)	830 mOhm, 830 mOhm
Supplier Device Package	InSOP-24C
Technology	Power MOSFET
Voltage - Load	600 V

Part	Load Type	Interface	Rds On (Typ)	Fault Protection	Technology	Voltage - Load	Features	Mounting Type	Supplier Device Package	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output / Channel	Package / Case	Package / Case	Package / Case [x]	Package / Case [x]
Power Integrations BRD1265C-TL	Capacitive and Resistive	Analog Logic PWM	830 mOhm 830 mOhm	Current Limiting Over Temperature Over Voltage	Power MOSFET	600 V	Bootstrap Circuit	Surface Mount	InSOP-24C	DC Motors General Purpose	150 °C	-40 °C	5.5 A	17 Leads	24-PowerSMD Module	0.425 in	10.8 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Half Bridge Driver DC Motors, General Purpose Power MOSFET InSOP-24C
