C0971A.41.10

Active

Prysmian Group

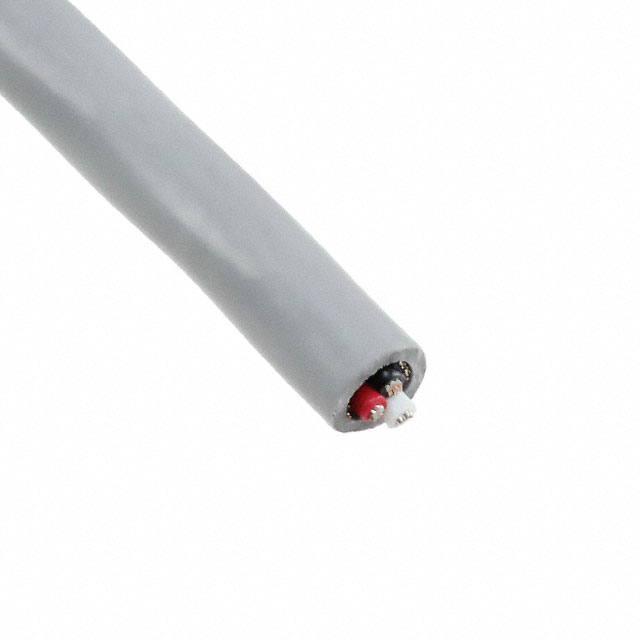

CABLE 3COND 22AWG GRAY SHLD 500'

Search across all available documentation for this part.

Active

Prysmian Group

CABLE 3COND 22AWG GRAY SHLD 500'

Technical Specifications

Parameters and characteristics for this part

Specification	C0971A.41.10

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Annealed Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	30 AWG
Jacket (Insulation) Diameter [diameter]	5.06 mm
Jacket (Insulation) Diameter [diameter]	0.199 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Gray
Length	15.24 m, 304.8 m
Length	1000 ft
Length [x]	50 ft, 500 '
Length [x]	152.4 m
Number of Conductors	3
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Ratings	ASTM B-33
Shield Coverage	100 %, 65 %
Shield Material	Tinned, Flexfoil®, Copper
Shield Type	Foil, Braid
Usage	Computer
Voltage	300 V
Wire Gauge	22 AWG

Part	Conductor Insulation	Ratings	Jacket (Insulation) Material	Voltage	Wire Gauge	Conductor Material	Jacket Color	Conductor Strand [custom]	Conductor Strand [custom]	Number of Conductors	Length	Length [x]	Length [x]	Usage	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Shield Coverage	Operating Temperature [Min]	Operating Temperature [Max]	Shield Material	Shield Type	Cable Type	Length
Prysmian Group C0971A.41.10	Poly-Vinyl Chloride (PVC)	ASTM B-33	Poly-Vinyl Chloride (PVC)	300 V	22 AWG	Copper Annealed Tinned	Gray	7	30 AWG	3	15.24 m 304.8 m	50 ft 500 '	152.4 m	Computer	5.06 mm	0.199 in	65 % 100 %	-20 C	80 C	Copper Flexfoil® Tinned	Braid Foil	Multi-Conductor	1000 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Conductor Multi-Conductor Cable Gray 22 AWG Foil, Braid 50.00' (15.24m)
