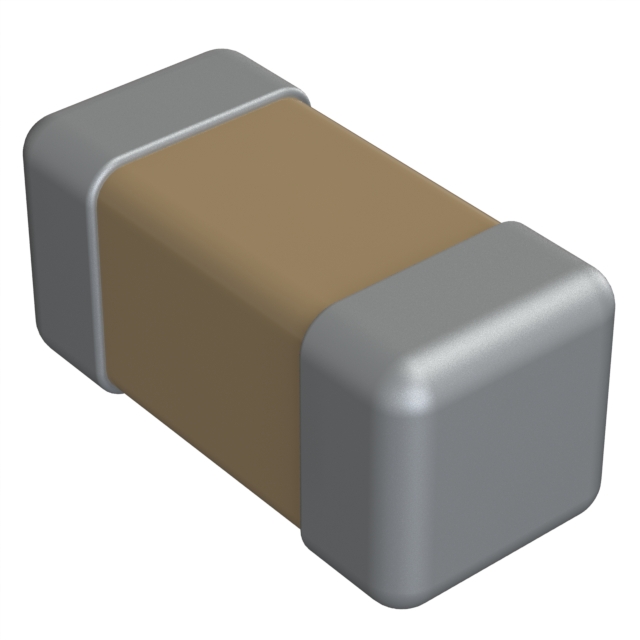

0603J0500331GAT

Active

Knowles Johanson Manufacturing

CAP CER 330PF 50V C0G/NP0 0603

Deep-Dive with AI

Search across all available documentation for this part.

0603J0500331GAT

Active

Knowles Johanson Manufacturing

CAP CER 330PF 50V C0G/NP0 0603

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0603J0500331GAT

Applications	Automotive
Capacitance	330 pF
Mounting Type	Surface Mount, MLCC
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	0603 (1608 Metric)
Ratings	AEC-Q200
Size / Dimension [x]	0.063 in
Size / Dimension [x]	1.6 mm
Size / Dimension [y]	0.8 mm
Size / Dimension [y]	0.031 in
Temperature Coefficient	NP0 (1B), C0G
Thickness (Max)	0.8 mm
Thickness (Max) [Max]	0.031 "
Tolerance	2 %
Voltage - Rated	50 VDC

0603J Series

...

Part	Operating Temperature [Min]	Operating Temperature [Max]	Temperature Coefficient	Capacitance	Thickness (Max) [Max]	Thickness (Max)	Applications	Tolerance	Package / Case	Voltage - Rated	Mounting Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Features	Ratings	Voltage - Rated [custom]
Knowles Johanson Manufacturing 0603J1000471MDT	-55 °C	125 °C	X7R	470 pF	0.031 "	0.8 mm	High Reliability	20 %	0603 (1608 Metric)	100 V	MLCC Surface Mount	0.8 mm	0.063 in	1.6 mm	0.031 in	High Temperature
Knowles Johanson Manufacturing 0603J0250183JXT	-55 °C	125 °C	X7R	0.018 µF	0.031 "	0.8 mm	General Purpose	5 %	0603 (1608 Metric)	25 VDC	MLCC Surface Mount	0.8 mm	0.063 in	1.6 mm	0.031 in
Knowles Johanson Manufacturing 0603J0630271KDT	-55 °C	125 °C	X7R	270 pF	0.031 "	0.8 mm	High Reliability	10 %	0603 (1608 Metric)		MLCC Surface Mount	0.8 mm	0.063 in	1.6 mm	0.031 in	High Temperature
Knowles Johanson Manufacturing 0603J0500331GAT	-55 °C	125 °C	C0G NP0 (1B)	330 pF	0.031 "	0.8 mm	Automotive	2 %	0603 (1608 Metric)	50 VDC	MLCC Surface Mount	0.8 mm	0.063 in	1.6 mm	0.031 in		AEC-Q200
Knowles Johanson Manufacturing 0603J0250180FCT	-55 °C	125 °C	C0G NP0 (1B)	18 pF	0.031 "	0.8 mm	General Purpose	1 %	0603 (1608 Metric)	25 VDC	MLCC Surface Mount	0.8 mm	0.063 in	1.6 mm	0.031 in
Knowles Johanson Manufacturing 0603J025P470DFT	-55 °C	125 °C	C0G NP0	0.47 pF	0.031 "	0.8 mm	High Reliability	0.5 pF	0603 (1608 Metric)	25 VDC	MLCC Surface Mount	0.8 mm	0.063 in	1.6 mm	0.031 in	High Temperature
Knowles Johanson Manufacturing 0603J0250681GFT	-55 °C	125 °C	C0G NP0	680 pF	0.031 "	0.8 mm	High Reliability	2 %	0603 (1608 Metric)	25 VDC	MLCC Surface Mount	0.8 mm	0.063 in	1.6 mm	0.031 in	High Temperature
Knowles Johanson Manufacturing 0603J0160120KFT	-55 °C	125 °C	C0G NP0	12 pF	0.031 "	0.8 mm	High Reliability	10 %	0603 (1608 Metric)		MLCC Surface Mount	0.8 mm	0.063 in	1.6 mm	0.031 in	High Temperature		16 V
Knowles Johanson Manufacturing 0603J016P680BFT	-55 °C	125 °C	C0G NP0 (1B)	0.68 pF	0.031 "	0.8 mm	High Reliability	0.1 pF	0603 (1608 Metric)		MLCC Surface Mount	0.8 mm	0.063 in	1.6 mm	0.031 in			16 V
Knowles Johanson Manufacturing 0603J2000270GAT	-55 °C	125 °C	C0G NP0 (1B)	27 pF	0.031 "	0.8 mm	Automotive	2 %	0603 (1608 Metric)	200 V	MLCC Surface Mount	0.8 mm	0.063 in	1.6 mm	0.031 in		AEC-Q200

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	8000	$ 0.34

Description

General part information

0603J Series

330 pF ±2% 50V Ceramic Capacitor C0G, NP0 (1B) 0603 (1608 Metric)

Documents

Technical documentation and resources

No documents available
