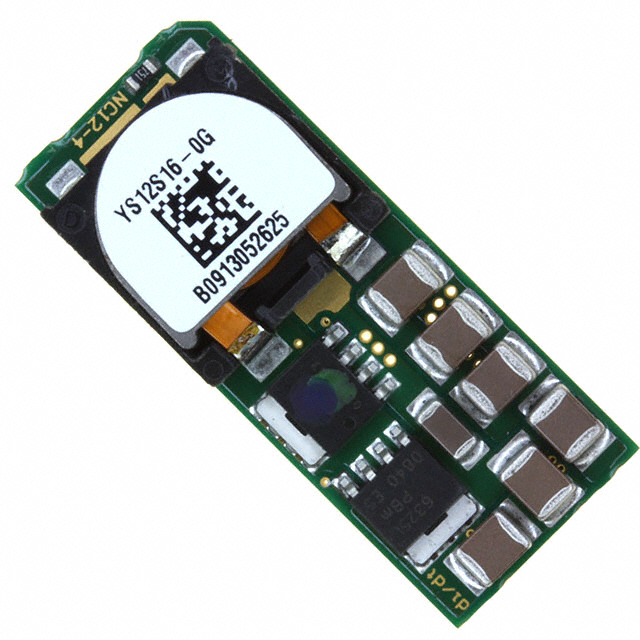

YS12S16-0G
ActiveEOS Power India Private Ltd
MODULE DC-DC 12VIN 1-OUT 0.7525V TO 5.5V 16A 88W 6-PIN SMD T/R
Deep-Dive with AI
Search across all available documentation for this part.
YS12S16-0G
ActiveEOS Power India Private Ltd
MODULE DC-DC 12VIN 1-OUT 0.7525V TO 5.5V 16A 88W 6-PIN SMD T/R
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | YS12S16-0G |
|---|---|
| Applications | ITE (Commercial) |
| Control Features | Active High, Enable |
| Current - Output (Max) [Max] | 16 A |
| Efficiency | 94.8 % |
| Features | Remote On/Off, UVLO, OCP, OTP |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 6-SMD Module |
| Power (Watts) | 88 W |
| Size / Dimension [x] | 1.3 " |
| Size / Dimension [x] | 33 mm |
| Size / Dimension [y] | 0.53 in |
| Size / Dimension [y] | 13.5 mm |
| Size / Dimension [z] | 0.31 in |
| Size / Dimension [z] | 7.9 mm |
| Type | Non-Isolated PoL Module |
| Voltage - Input (Max) [Max] | 14 V |
| Voltage - Input (Min) [Min] | 9.6 V |
| Voltage - Output 1 [Max] | 5.5 V |
| Voltage - Output 1 [Min] | 0.75 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
YS12S16 Series
Non-Isolated PoL Module DC DC Converter 1 Output 0.75 ~ 5.5V 16A 9.6V - 14V Input
Documents
Technical documentation and resources
No documents available
