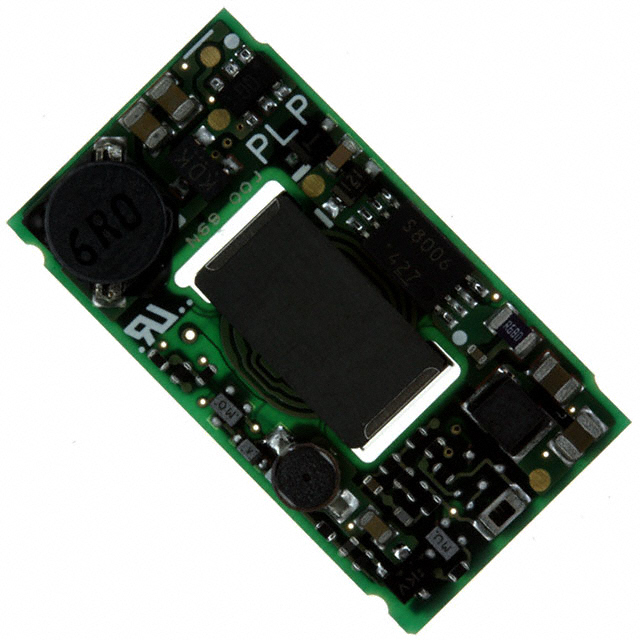

MPD5D018S
ObsoleteMurata Power Solutions Inc.
ISOLATED DC/DC CONVERTERS - SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MPD5D018S
ObsoleteMurata Power Solutions Inc.
ISOLATED DC/DC CONVERTERS - SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MPD5D018S |
|---|---|
| Applications | ITE (Commercial) |
| Control Features | Active Low, Enable |
| Current - Output (Max) [Max] | 1 A |
| Efficiency | 85 % |
| Features | OCP, OVP, Remote On/Off |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 7-SMD Module |
| Power (Watts) | 5 W |
| Size / Dimension [x] | 1.06 " |
| Size / Dimension [x] | 26.8 mm |
| Size / Dimension [y] | 14.6 mm |
| Size / Dimension [y] | 0.57 in |
| Size / Dimension [z] | 0.17 in |
| Size / Dimension [z] | 4.4 mm |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 75 V |
| Voltage - Input (Min) [Min] | 36 V |
| Voltage - Isolation | 1.5 kV |
| Voltage - Output 1 | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
MPD5D Series
Isolated DC/DC Converters - SMD
