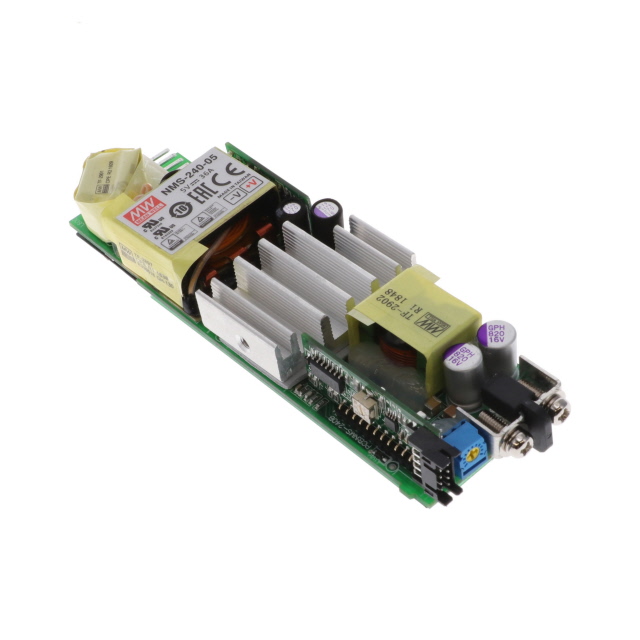

NMS-240-5

Active

MEAN WELL USA Inc.

CONFIG DC PWR MOD 5V (3-6V)

Search across all available documentation for this part.

Active

MEAN WELL USA Inc.

CONFIG DC PWR MOD 5V (3-6V)

Technical Specifications

Parameters and characteristics for this part

Specification	NMS-240-5

Current - Output (Max) [Max]	36 A
Features	Remote On/Off, User Adjustable
Number of Outputs	1
Power (Watts)	180 W
Standard Number	60601-1, 62368-1
Type	DC Output Module, Single
Voltage - Output	5 V
Voltage - Output [Max]	6 VDC
Voltage - Output [Min]	3 V

Part	For Use With/Related Products	Accessory Type	Type	Standard Number	Power (Watts)	Number of Outputs	Voltage - Output [Min]	Voltage - Output	Voltage - Output [Max]	Features	Current - Output (Max) [Max]
MEAN WELL USA Inc. NMS-240-P4	NMS-240 4 Unit	Parallel Connection Cable
MEAN WELL USA Inc. NMS-240-12			DC Output Module Single	60601-1 62368-1	240 W	1	6 V	12 V	15 V	Remote On/Off User Adjustable	20 A
MEAN WELL USA Inc. NMS-240-P3	NMS-240 3 Unit	Parallel Connection Cable
MEAN WELL USA Inc. NMS-240-P5	NMS-240 5 Unit	Parallel Connection Cable
MEAN WELL USA Inc. NMS-240-P6	NMS-240 6 Unit	Parallel Connection Cable
MEAN WELL USA Inc. NMS-240-5			DC Output Module Single	60601-1 62368-1	180 W	1	3 V	5 V	6 VDC	Remote On/Off User Adjustable	36 A
MEAN WELL USA Inc. NMS-240-24			DC Output Module Single	60601-1 62368-1	240 W	1	15 V	24 V	30 VDC	Remote On/Off User Adjustable	10 A
MEAN WELL USA Inc. NMS-240-P2	NMS-240 2 Unit	Parallel Connection Cable
MEAN WELL USA Inc. NMS-240-48			DC Output Module Single	60601-1 62368-1	240 W	1	30 V	48 V	55 V	Remote On/Off User Adjustable	5 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5V (3 ~ 6V) 180 W AC DC Configurable Power Supply Modules
